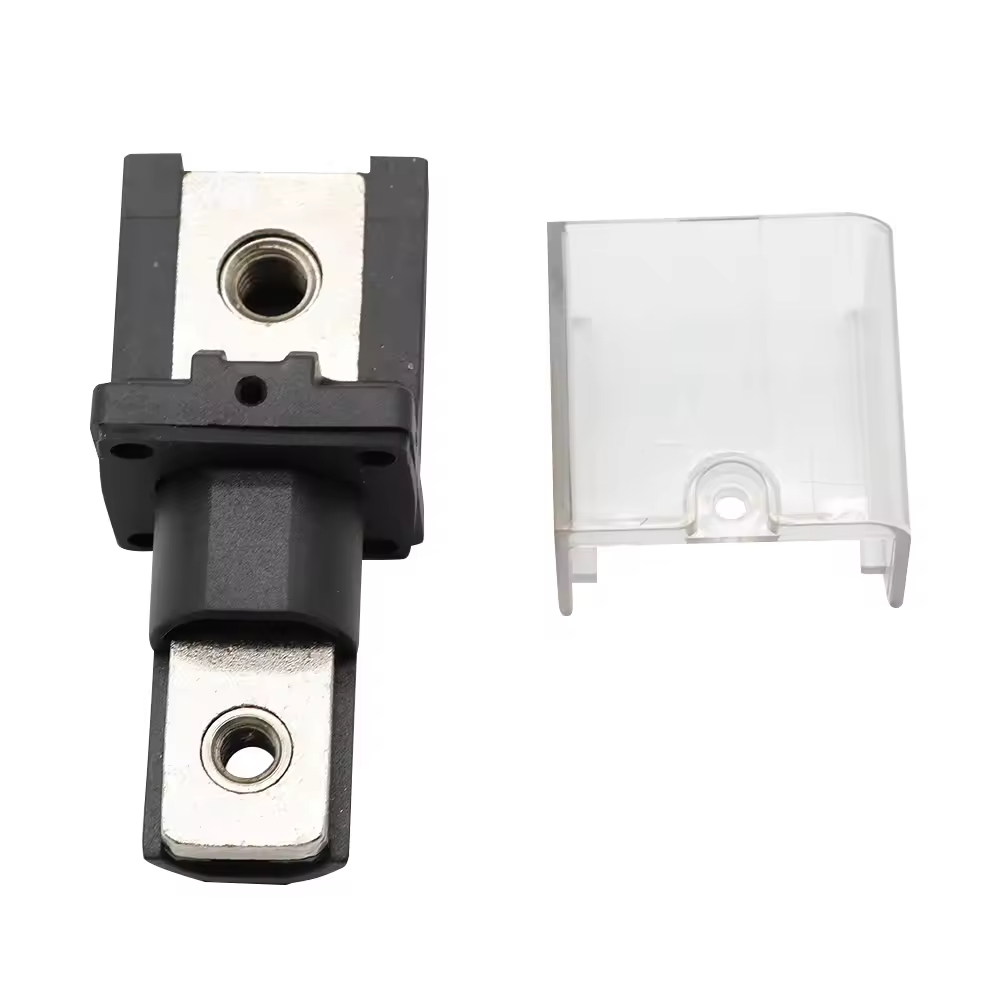

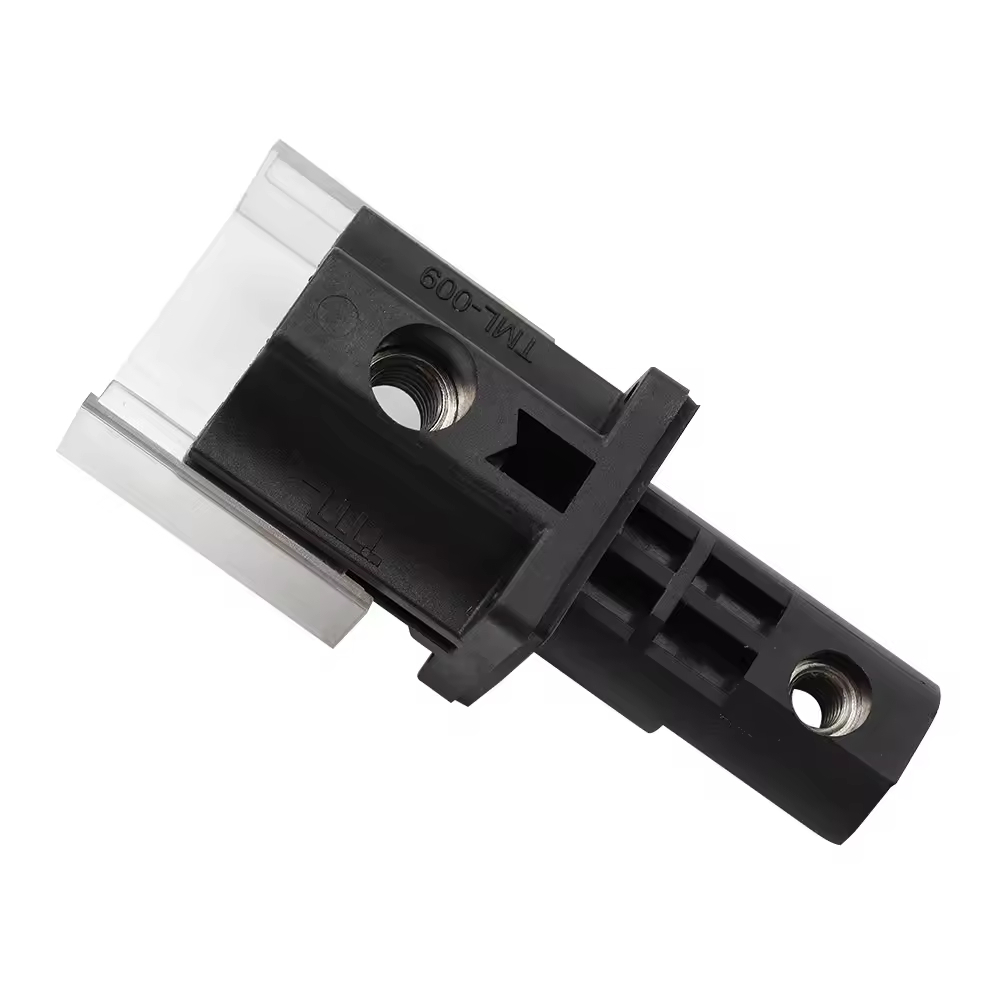

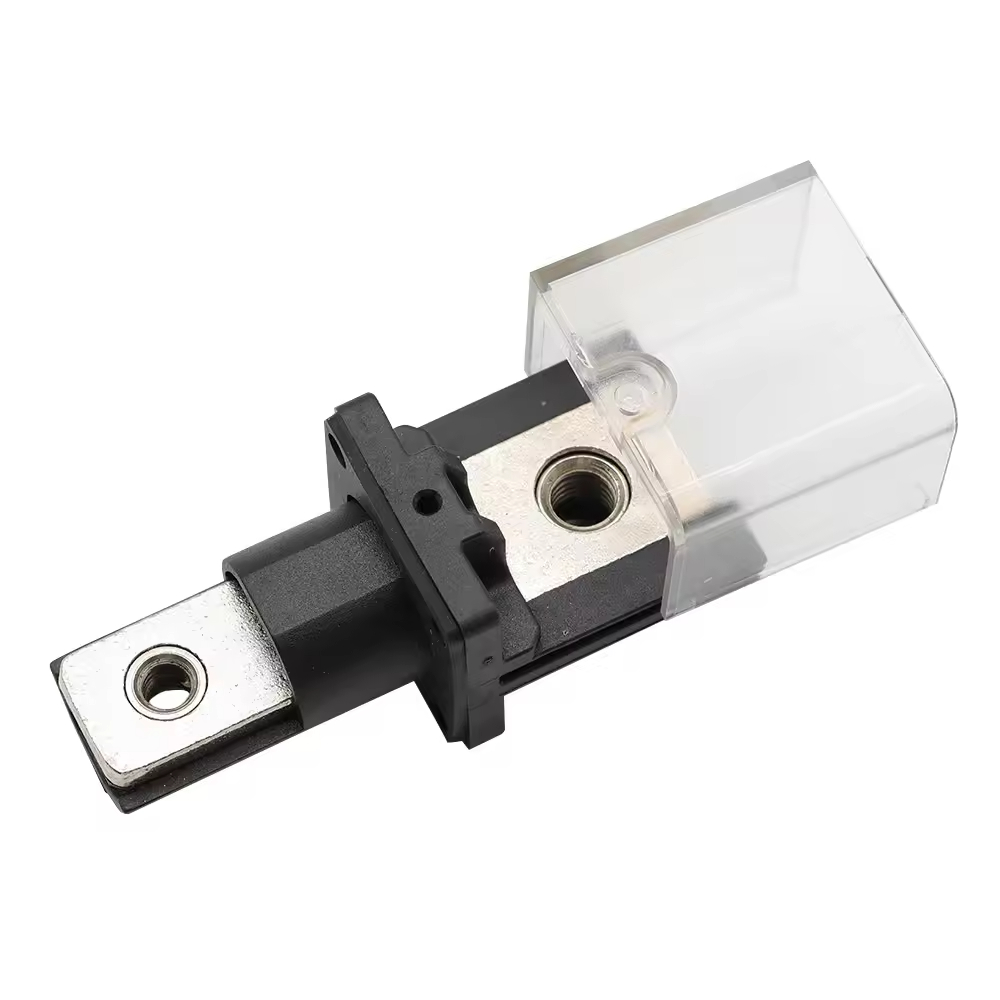

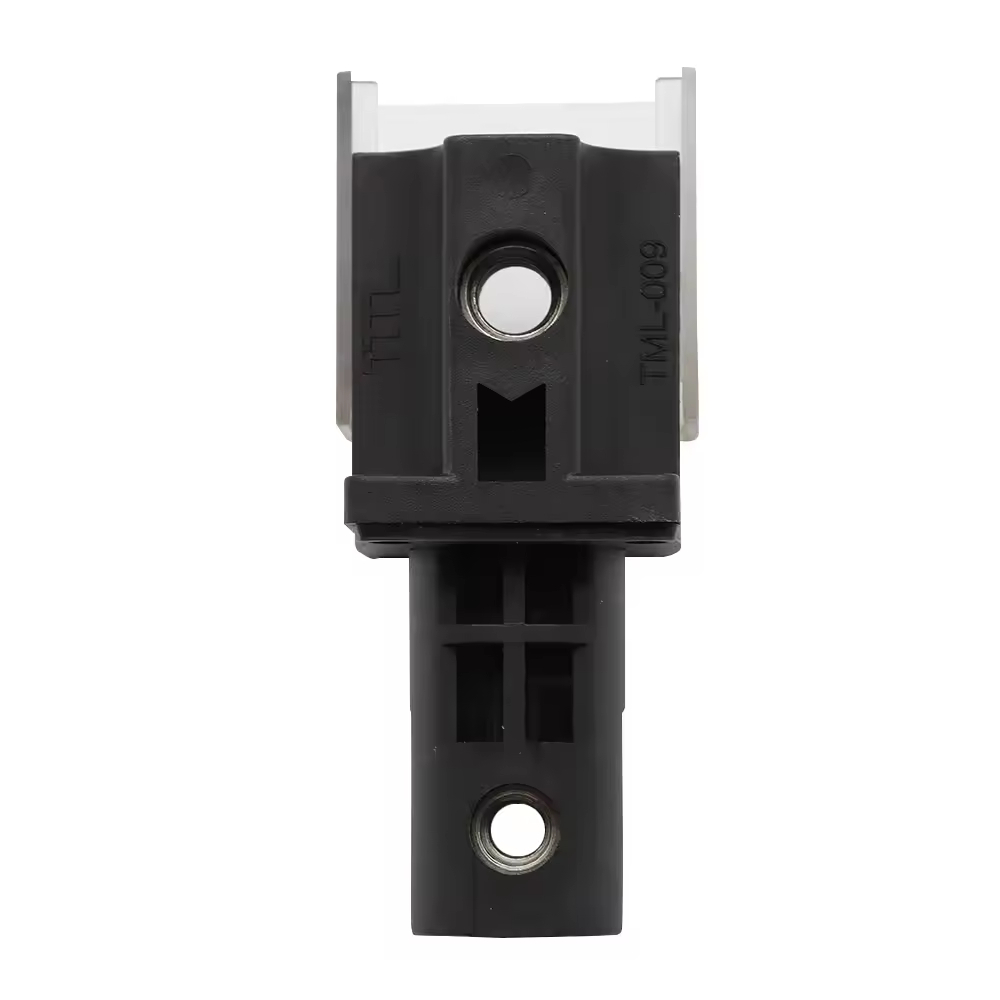

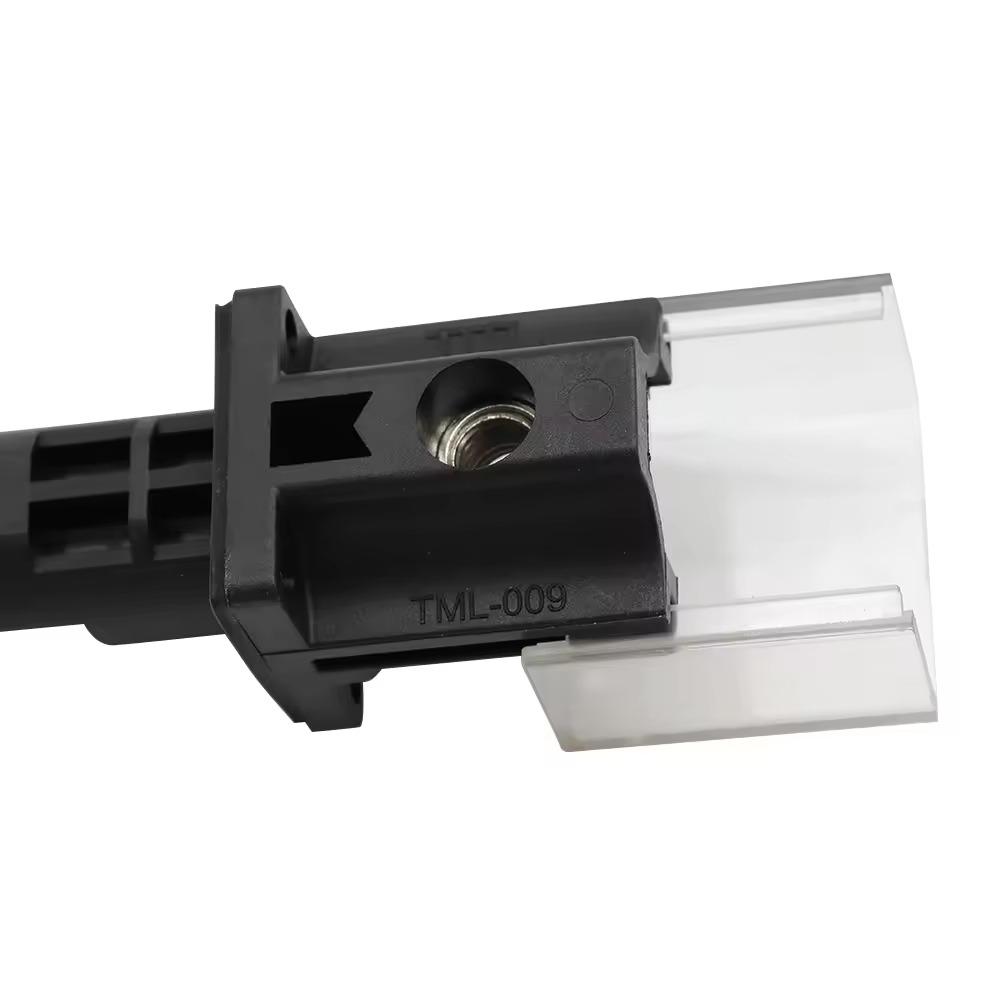

Factory Supply Lithium Battery Connector 350A Plug-In Energy Storage Connector Ess Connector

  • Minor customization
  • Drawing-based customization
  • Sample-based customization
  • Full customization
ANFRAGE!
Beschreibung

General Specification

Application
Automobil,Energy Storage
Place of Origin
Guangdong, China
Model Number
007
Brand Name
Qianwei-Präzision
Gender
Male
Type
Connector
Product name
DC input binding post
Material
Kupfer
Type
Screw Terminal
Rated voltage
1500V
fireproof material
PA66
Rated Current
250A
IP Degree
IP68
Color
Red/Black/Orange
Certificate
CE RoHS

General Specifaction

Overview

KR4005 Series AMP Heavy Duty Sealed 3.00mm Pitch 6Pin Automotive Connector is designed for harsh environments and is suitable for use in trucks, construction machinery and many other areas. The rectangular thermoplastic housing and silicone gasket ensure stable operation under extreme temperature and humidity. It supports a wide range of terminal types and positions, and has an integrated slider latch and secondary locking device to provide a stable, high-performance connection. Complying with many international standards, it has excellent waterproof, vibration-resistant and flame-retardant properties, making it an ideal choice for heavy-duty applications.

Advantages

  • High durability and stability
The robust glass-filled PBT housing and silicone gaskets are able to withstand extreme temperature and humidity conditions, ensuring long-term stable operation in harsh environments.
  • High Electrical Performance
Complies with international electrical standards, such as insulation resistance, dielectric withstand voltage and other excellent performance to ensure electrical safety.
  • Flame retardant safety
The use of UL 94 V0 fire-rated materials improves product safety.
  • High-performance connection
Supports a variety of terminal types to meet different current requirements, achieving highly stable and high-performance connections.
  • Reliable locking mechanism
The integrated slider locking structure is paired with a secondary locking device to ensure that the terminals are assembled in place and to enhance retention force to prevent accidental dislodgement.

Overview

Series:

E/TE/RV/RNB/SV/SNB/PTV/PTV/PTN/DBV/DBE/DBN/BV

/BN/MDD/FDD/MPD/FRD/FDFD/PBDD/LBV/FSV/LSV

/LSNB/HV/HNB/BNYF/FLDNY/FDFN/SC

Surface Treatment:pass salt spray testing,electrophoresis,passivating,deburring,polishing,brush
Material:copper/pvc/nylon
Color:red,green,brown,yellow,blue,gray,black
Package:plastic bags,box,export carton and any other customized package according to the customers requests
Test:salt and spray test,tensile test et
Application:all different kinds of telecom products,Automobil,high-end digital cameras,medical equipment,remote,washing machines,vacuum cleaners,desk lamp,furniture,swich power supply,socket,water heater,high-end toys,calculator,electrical,inrerphone,wireless mouse,wifi router,cordless telephone,mobile,mobile dvd,sounder.Auto clutch,bicycle brake,scooter and so on
Quotation:please provide the formal drawings(nomally,with dwg,stp,pdf,file)and make note with material,quantity,surface treatment and any other requirements,we will provide you the quotation sheet in 24-72 hours
