소개
Choosing the right electrical terminal may seem like a small decision—but in reality, it has a massive impact on the 성능, 안전, 그리고 수명 of your entire electrical system.
Whether you’re working on automotive wiring harnesses, 산업용 제어 패널, or home appliances, the wrong terminal can lead to:
- 과열
- 전압 강하
- 느슨한 연결
- Costly system failures
Yet, many buyers and engineers still treat terminals as a commodity product, focusing only on price rather than performance.
이 가이드에서는, 우리는 most common mistakes when selecting electrical terminals—and more importantly, how to avoid them.
What Are the Biggest Mistakes?
The most common mistakes when selecting electrical terminals include:
- Using the wrong wire size (AWG mismatch)
- Choosing incorrect materials
- Ignoring current and voltage ratings
- Overlooking environmental conditions
- Selecting the wrong terminal type
- Poor crimping compatibility
Avoiding these mistakes ensures better conductivity, stronger connections, 그리고 더 긴 서비스 기간.
Why Choosing the Right Electrical Terminal Matters
1. 전기적 성능
Terminals directly affect 접촉저항. Poor selection leads to:
- 저항력 증가
- 열 축적
- 에너지 손실
2. Mechanical Reliability
A proper terminal ensures:
- 강력한 와이어 고정력
- 진동에 대한 저항
- 장기 내구성
3. 안전 & 규정 준수
Incorrect terminals can cause:
- Electrical fires
- 단락
- Compliance failures (UL, IEC 표준)
Top Mistakes When Selecting Electrical Terminals

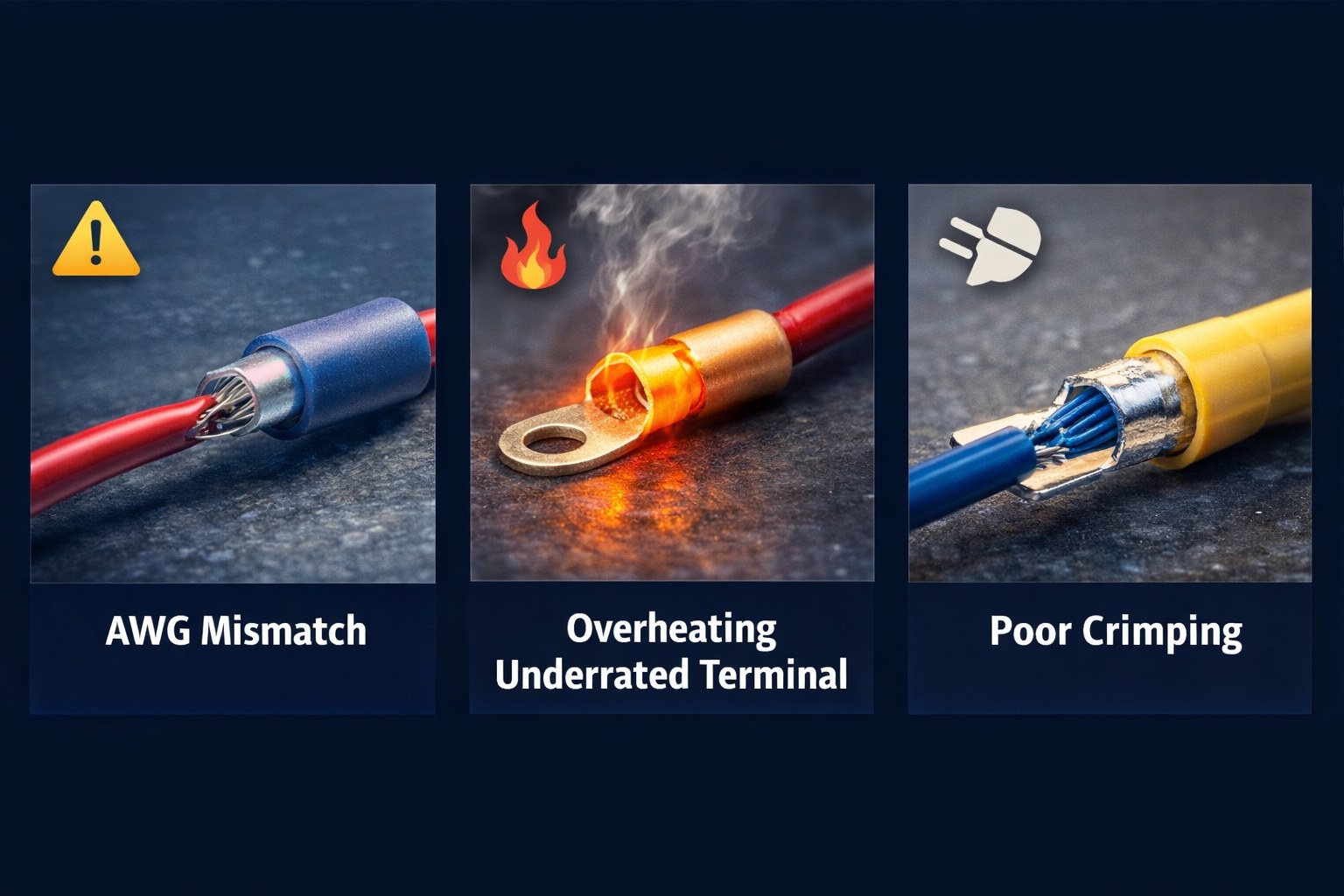

1. Ignoring Wire Size Compatibility (AWG Mismatch)
This is one of the most frequent and critical mistakes.
What goes wrong:
- Too large → loose connection
- Too small → wire damage or improper crimp
결과:
- 저항력 증가
- Potential overheating
그것을 피하는 방법:
- Always match terminal specifications with wire gauge (AWG)
- 보정된 압착 도구 사용
2. Choosing the Wrong Terminal Material
Material selection directly impacts both conductivity and durability.
공통재료:
- 구리 → 우수한 전도성
- Brass → good strength, moderate conductivity
- Phosphor Bronze → high fatigue resistance
실수:
Choosing cheaper materials without considering application requirements.
해결책:
- Use copper or high-conductivity alloys for power applications
- Choose corrosion-resistant materials for harsh environments
3. Overlooking Current and Voltage Ratings
Every terminal has a maximum current capacity.
실수:
Using underrated terminals in high-load applications.
Consequences:
- 과열
- Insulation failure
- 화재 위험
Best practice:
- Always apply a safety margin (derating)
- Review manufacturer datasheets carefully
4. Ignoring Environmental Conditions
Electrical terminals don’t operate in ideal lab conditions.
Key environmental factors:
- Temperature extremes
- 수분 / 습기
- 화학적 노출
- Outdoor vs indoor use
Common mistake:
Using standard terminals in harsh environments.
해결책:
- Use insulated or sealed terminals
- Select appropriate plating (예를 들어, tin plating for corrosion resistance)
5. Selecting the Wrong Terminal Type
Different applications require different terminal designs.
예:
- Ring terminals → secure, 진동 방지
- Spade terminals → easy installation/removal
- Quick disconnects → fast assembly
실수:
Choosing based on convenience rather than application.
결과:
- Poor fit
- Reduced reliability
6. Poor 압착 호환성
Even the best terminal fails with a bad crimp.
Mistakes include:
- 잘못된 압착 도구 사용
- Incorrect crimp profile
- Inconsistent crimp force
Consequences:
- 느슨한 연결
- 높은 저항
- 조기 실패
해결책:
- Match terminal type with proper tooling
- Use automated crimping for consistency
7. Ignoring Plating and Surface Treatment
Plating is not just cosmetic—it’s functional.
공통 옵션:
- 주석 도금 → 내식성
- Nickel plating → high temperature resistance
실수:
Using bare terminals in corrosive environments.
영향:
- 산화
- 시간이 지날수록 저항력 증가
8. Not Considering Vibration and Mechanical Stress
Critical in:
- 자동차
- 산업기계
- 항공우주
실수:
Using standard terminals in high-vibration environments.
해결책:
- Use locking or reinforced terminals
- Perform vibration testing
9. Focusing Only on Price
Low-cost terminals often lead to high long-term costs.
Hidden costs:
- 유지
- 중단 시간
- 제품 리콜
Better approach:
- Evaluate total lifecycle cost
- Prioritize quality and reliability
10. Skipping Standards and Certifications
Compliance is non-negotiable in many industries.
Key standards:
- UL
- IEC
- RoHS 규제
실수:
인증되지 않은 부품 사용.
Risk:
- Export issues
- Customer rejection
- Legal liability
How to Choose the Right Electrical Terminal (단계별)
Selecting the right electrical terminal requires a systematic evaluation process rather than guesswork. By following the steps below, engineers and buyers can significantly reduce failure risks and ensure optimal performance.
단계 1: 전기 요구 사항 정의
Start by clearly identifying the electrical parameters of your application:
- 현재 부하 (Ampacity): Determine both continuous and peak current
- 전압 레벨: Consider insulation requirements and spacing
- Load type: Resistive, inductive, or capacitive loads affect performance
왜 중요한가요?:
Underspecifying terminals can lead to overheating, while overspecifying may increase unnecessary costs.
Best practice:
Apply a derating factor (typically 20–30%) to ensure safe operation under real-world conditions.
단계 2: Identify Wire Specifications
The terminal must match the physical and electrical characteristics of the wire:
- 와이어 게이지 (AWG): Ensure exact compatibility
- Stranded vs. solid wire: Affects crimping behavior
- Conductor material: Copper vs aluminum (or alloys)
왜 중요한가요?:
Mismatch between wire and terminal leads to poor crimp quality and unstable connections.
Best practice:
Always verify the wire range specified in the terminal datasheet, not just nominal size.
단계 3: Evaluate Environmental Conditions
Assess where and how the terminal will be used:
- Temperature range: High heat may require special alloys or plating
- 습도와 습기: Risk of corrosion
- Exposure to chemicals or oils
- Indoor vs outdoor applications
왜 중요한가요?:
Environmental stress is one of the leading causes of terminal degradation over time.
Best practice:
Choose terminals with appropriate 격리, 밀봉, or corrosion-resistant plating (예를 들어, tin or nickel).
단계 4: Select Terminal Type
Different terminal designs serve different functional needs:
- 링 터미널: Maximum security, ideal for vibration environments
- 스페이드 터미널: Easy installation and maintenance
- 빠른 연결 해제: Fast assembly in high-volume production
왜 중요한가요?:
Incorrect terminal type can reduce efficiency in installation and compromise reliability.
Best practice:
Select based on both mechanical requirements and maintenance accessibility, not just convenience.
단계 5: Choose Material and Plating
Material selection determines conductivity, 힘, 그리고 수명:
- 구리: सर्वोत्तम conductivity, 널리 사용되는
- 놋쇠: Better mechanical strength
- 인청동: 우수한 피로 저항
도금 옵션:
- 주석 도금: 내식성, 비용 효율적
- 니켈 도금: High-temperature performance
왜 중요한가요?:
Material and plating directly affect electrical efficiency and durability.
Best practice:
Balance performance requirements with cost, focusing on long-term reliability rather than initial price.
단계 6: Verify Tooling Compatibility
Even the correct terminal will fail if installed improperly.
Check:
- Crimping tool type (수동, 반자동, fully automatic)
- Crimp profile compatibility
- Calibration and consistency of tooling
왜 중요한가요?:
Improper crimping results in high resistance, weak mechanical strength, and early failure.
Best practice:
사용 manufacturer-recommended crimping tools and perform pull-out and conductivity testing when possible.
Final Tip: Validate Before Mass Production
Before scaling up:
- Conduct sample testing
- Perform electrical and mechanical validation
- Simulate real-world conditions (온도, 진동, load)
왜 중요한가요?:
Early validation prevents costly rework, product recalls, and field failures.
This structured approach ensures that your terminal selection is technically sound, 비용 효율적, and reliable across the product lifecycle.
Real-World Case Study
Scenario:
An appliance manufacturer experienced overheating in wiring connections.
Root Cause:
Underrated brass terminals used for high-current circuits.
해결책:
Switched to high-conductivity copper terminals with proper plating.
결과:
- 35% reduction in heat generation
- Improved product reliability
- Fewer warranty claims
Pro Tips from Industry Experts
- Always test terminals before mass production
- Request samples from suppliers
- Standardize terminal specifications across projects
- 문서 압착 매개변수
- Work with experienced manufacturers
Why Work with a Professional Terminal Manufacturer
Choosing a reliable partner can eliminate most of the mistakes discussed above.
~에 첸웨이 정밀, 우리는 제공합니다:
- Custom terminal design for specific applications
- Material optimization for performance and cost
- 엄격한 품질 관리 프로세스
- Compliance with global standards
- Engineering support for your projects
This ensures you get 일관된 품질, reduced failure rates, and better long-term ROI.
결론
Selecting the right electrical terminal is not just a technical detail—it’s a critical decision that affects the entire system.
By avoiding these common mistakes, 당신은 할 수:
- Improve electrical efficiency
- Enhance safety
- Reduce maintenance costs
- Extend product lifespan
The key is simple: focus on performance, not just price.
자주 묻는 질문
1. What happens if I use the wrong size terminal?
It can cause loose connections or wire damage, leading to overheating and failure.
2. 내 전선에 적합한 터미널을 선택하는 방법?
Match the terminal to the wire gauge (AWG), 재료, 및 신청 요구 사항.
3. Which material is best for electrical terminals?
Copper is generally best for conductivity, while alloys offer better strength and durability.
4. Are plated terminals better?
예, plating improves corrosion resistance and long-term reliability.
5. What is the most common mistake?
Using the wrong wire size or ignoring current ratings.
6. Can I reuse electrical terminals?
권장되지 않음, especially for crimped terminals, as reliability decreases.
7. How important is crimping quality?
Extremely important—it directly affects electrical and mechanical performance.
8. What standards should terminals meet?
UL, IEC, and RoHS are commonly required.
9. Do environmental conditions really matter?
예, they significantly impact corrosion, 격리, 성능.
10. Should I choose crimp or solder terminals?
Crimping is generally preferred for reliability and scalability in industrial applications.
