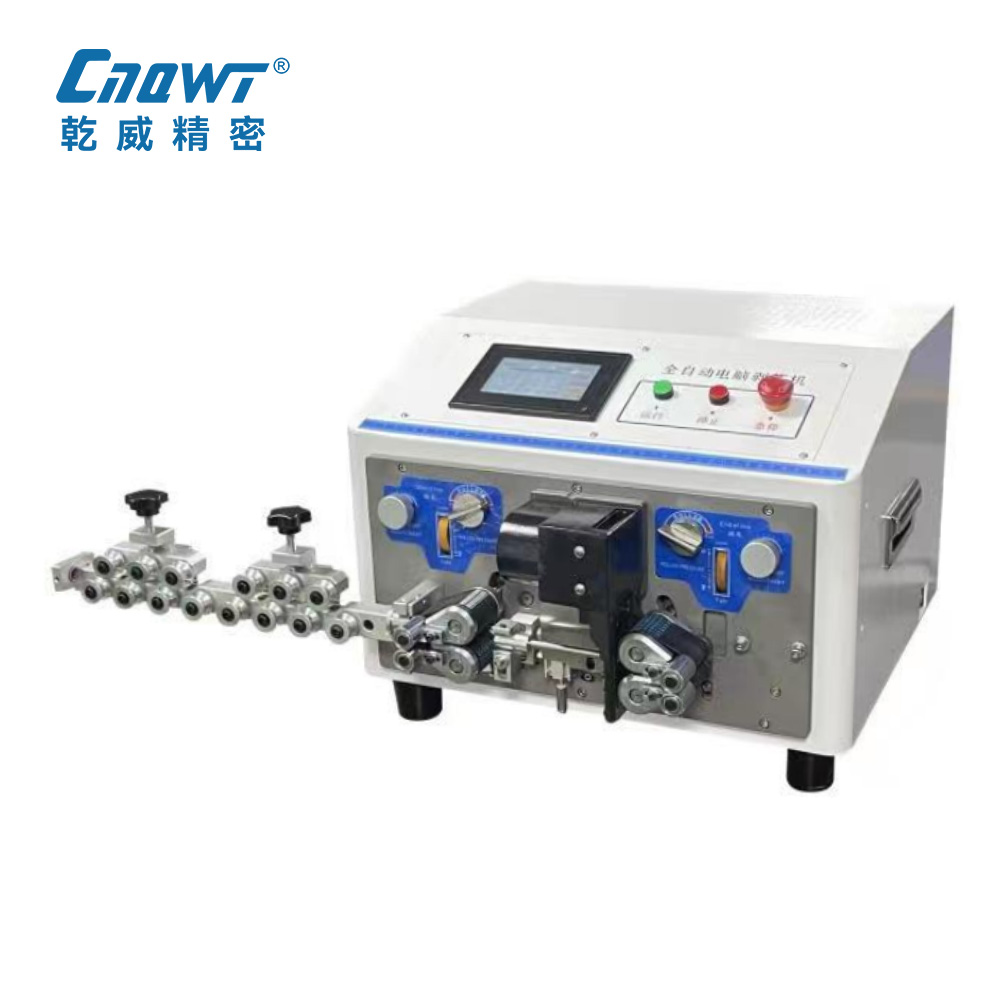

Multi-core sheath wire stripping machine

product name

Multi-core sheathed wire stripping machine (for both inner and outer sheathing)

model

JT-505D model

function

The sheath wire is fully or partially stripped from the outer core wire, with functions for complete stripping and partial stripping.

External dimensions

420mm long × 297mm high × 345mm wide

weight

40㎏

display mode

4.3-inch touch screen (Chinese Traditional/English toggle)

Power Supply (Switching Power Supply)

AC175V－250≤50/60HZ

power

120W----220W

Cut length

0.1mm---99999.9mm

length of skin stripping

Remove the head (0.1-150 mm) and tail (0.1-80 mm)

core stripping length

Remove the head (0.1-30 mm) and tail (0.1-30 mm)

Cut the core:

2-8 core sheathed cable with O.D. 7.0 or less

intermediate shearing

13 places

Catheter diameter

1.5mm-----9mm

cutter material ：

Tungsten Steel/Imported High Speed Steel Strip Core Wire Knife

Drive mode

Four-wheel drive, belt feeding

unwinding wire per hour

700-1200 items

wire pressure adjustment

have

pulse equivalency

The error within 1-meter line is 0.05 mm.

total

999999

batch

99999

Notes

It can increase automatic stop for missing wire, automatic out wire, automatic in wire, and start at a fixed time.
