General Specification

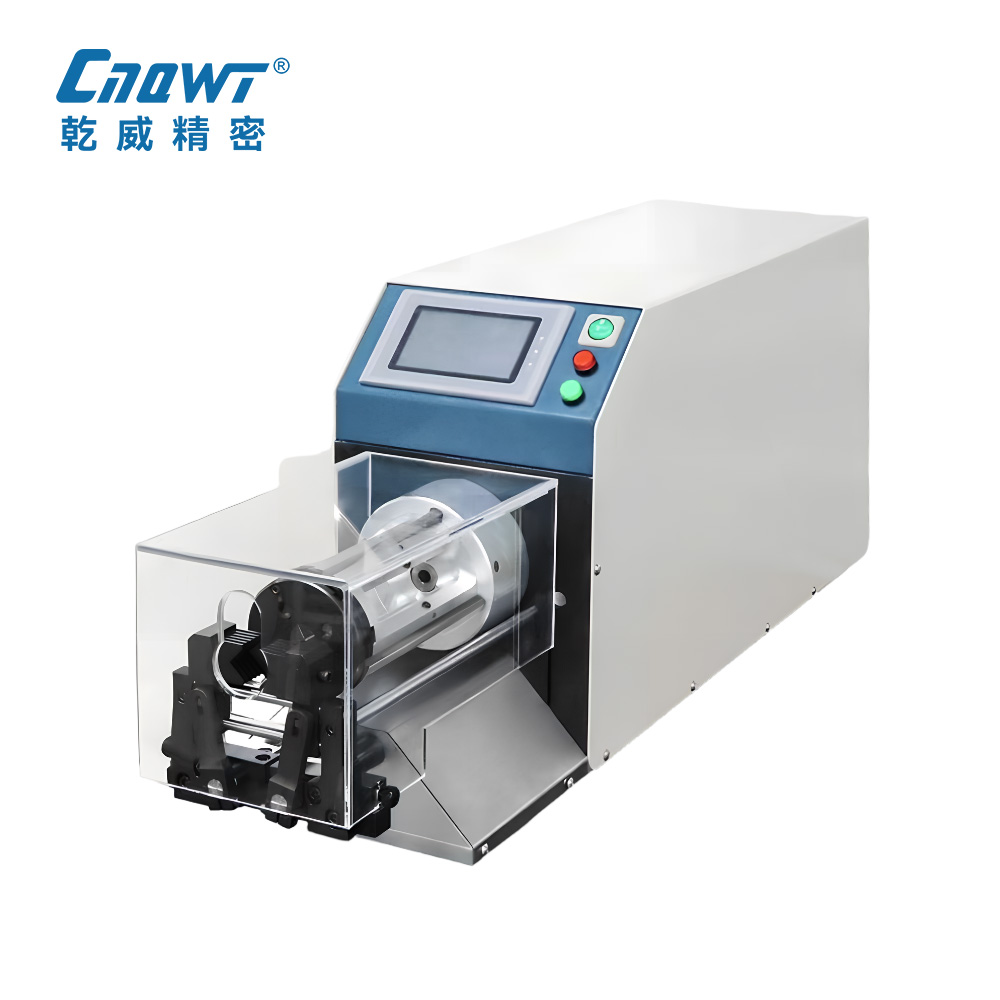

This wire stripper is primarily used for the processing of coaxial cables, high-voltage harnesses for new energy applications, and specialized cables. Advanced rotary tool holders are employed to enhance machining accuracy and speed. A dedicated axial positioning device and rotary tooling method are utilized.
Parameter ：
Model: QW-2520
Display method: Touch screen
Applicable cables: coaxial cables, automotive cables. Display interface: Chinese LCD (95mm*50mm).
Power supply: AC110V 50/60HZ, 800W
Shell length: Ø0.1mm to Ø200mm;
Dimensions: 1000*225*400mm
Unit of skin length setting: 0.01mm Weight: 50kg
Cutting wire diameter range: ø3.0-ø25mm. Drive method: motor or ball screw drive.
Cut depth setting unit: 0.01mm Peeling method: rotary knife
Maximum number of peeling layers: 9 layers
Tool material: Imported tungsten steel
Operating environment: -5 to 45°C, dry and vibration-free work surface
Storage capacity: 99 types of processing parameter data
Overview
| Series: | E/TE/RV/RNB/SV/SNB/PTV/PTV/PTN/DBV/DBE/DBN/BV /BN/MDD/FDD/MPD/FRD/FDFD/PBDD/LBV/FSV/LSV /LSNB/HV/HNB/BNYF/FLDNY/FDFN/SC |
| Surface treatment: | pass salt spray testing, electrophoresis, passivating, deburring, polishing, brush |
| Material: | copper/pvc/nylon |
| Color: | red, green, brown, yellow, blue, gray, black |
| Package: | plastic bags, box, export carton and any other customized package according to the customers requests |
| Test: | salt and spray test, tensile test et |
| Application: | all different kinds of telecom products, automotive, high-end digital cameras, medical equipment, remote, washing machines, vacuum cleaners, desk lamp, furniture, swich power supply, socket, water heater, high-end toys, calculator, electrical, inrerphone, wireless mouse, wifi router, cordless telephone, mobile, mobile dvd, sounder. Auto clutch, bicycle brake, scooter and so on |
| Quotation: | please provide the formal drawings(nomally, with dwg, stp, pdf, file)and make note with material, quantity, surface treatment and any other requirements, we will provide you the quotation sheet in 24-72 hours |
