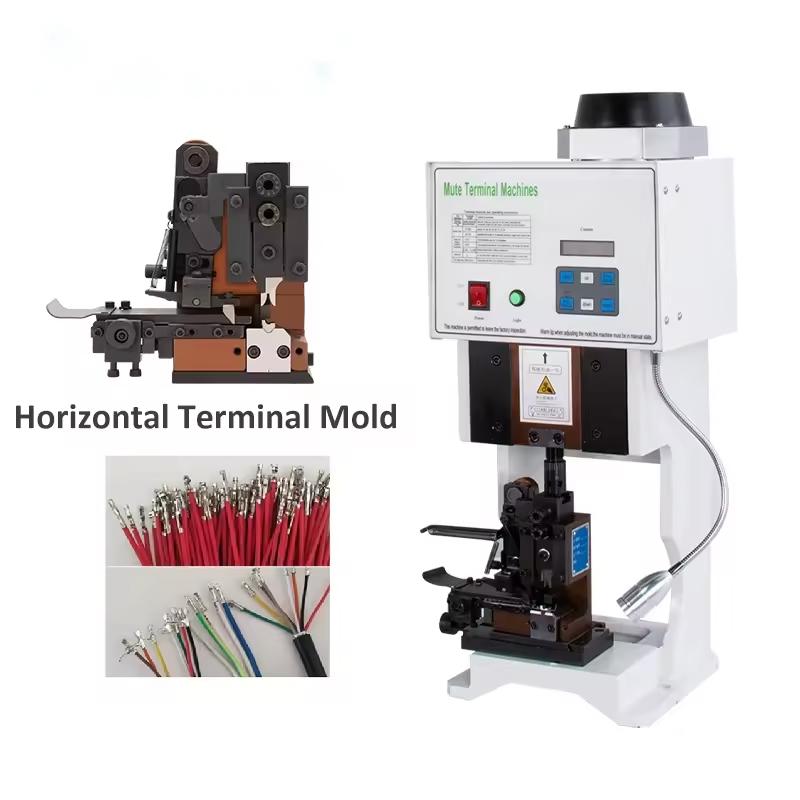

General Specification
Usage
Crimping
model number
EW-09C
Place of origin
China
brand name
Qianwei Precision
Model
EW-09C
Stroke
30mm/40mm
Power supply
AC110/220V/50HZ/60HZ
Crimping force
2T/20KN
Motor power
0.75KW
Weight
48KGS
Measurement
220*240*640mm
QW-09 (1.5T-5T) | ||||
Stroke | 30mm/40mm | |||
Power supply | AC110/220V/50HZ/60HZ | |||
Model | Crimping force | Motor power | Weight | Measurement |
EW-09B | 1.5T/15KN | 0.55KW | 35KGS | 210*210*580mm |
EW-09C | 2T/20KN | 0.75KW | 48KGS | 220*240*640mm |
EW-09D | 3T/30KN | 1.1KW | 50KGS | 220*240*640mm |
EW-09E | 4T/40KN | 1.5KW | 70KGS | 206*300*710mm |
EW-09F | 5T/42KN | 1.8KW | 73KGS | 260*300*710m |

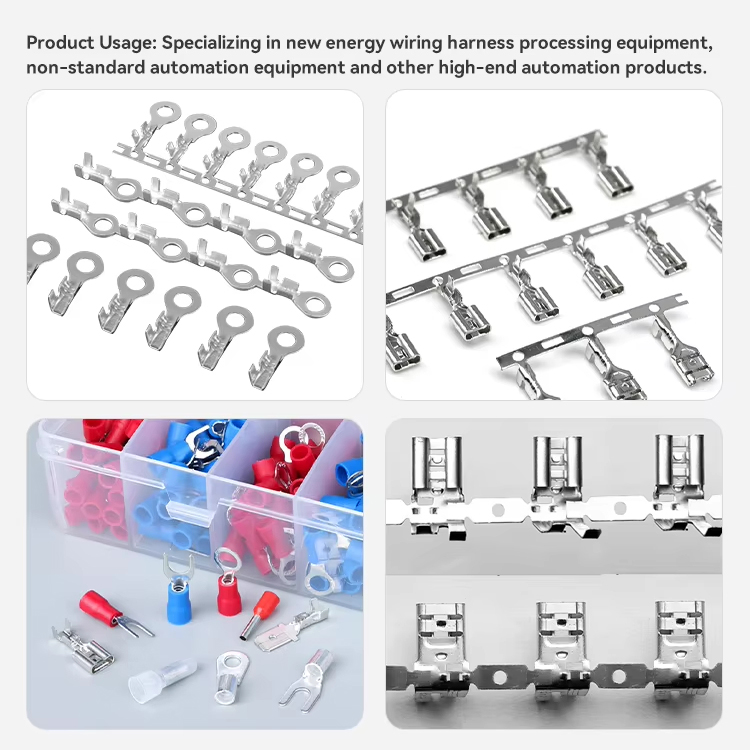

Overview
| Series: | E/TE/RV/RNB/SV/SNB/PTV/PTV/PTN/DBV/DBE/DBN/BV /BN/MDD/FDD/MPD/FRD/FDFD/PBDD/LBV/FSV/LSV /LSNB/HV/HNB/BNYF/FLDNY/FDFN/SC |
| Surface treatment: | pass salt spray testing, electrophoresis, passivating, deburring, polishing, brush |
| Material: | copper/pvc/nylon |
| Color: | red, green, brown, yellow, blue, gray, black |
| Package: | plastic bags, box, export carton and any other customized package according to the customers requests |
| Test: | salt and spray test, tensile test et |
| Application: | all different kinds of telecom products, automotive, high-end digital cameras, medical equipment, remote, washing machines, vacuum cleaners, desk lamp, furniture, swich power supply, socket, water heater, high-end toys, calculator, electrical, inrerphone, wireless mouse, wifi router, cordless telephone, mobile, mobile dvd, sounder. Auto clutch, bicycle brake, scooter and so on |
| Quotation: | please provide the formal drawings(nomally, with dwg, stp, pdf, file)and make note with material, quantity, surface treatment and any other requirements, we will provide you the quotation sheet in 24-72 hours |
