General Specification

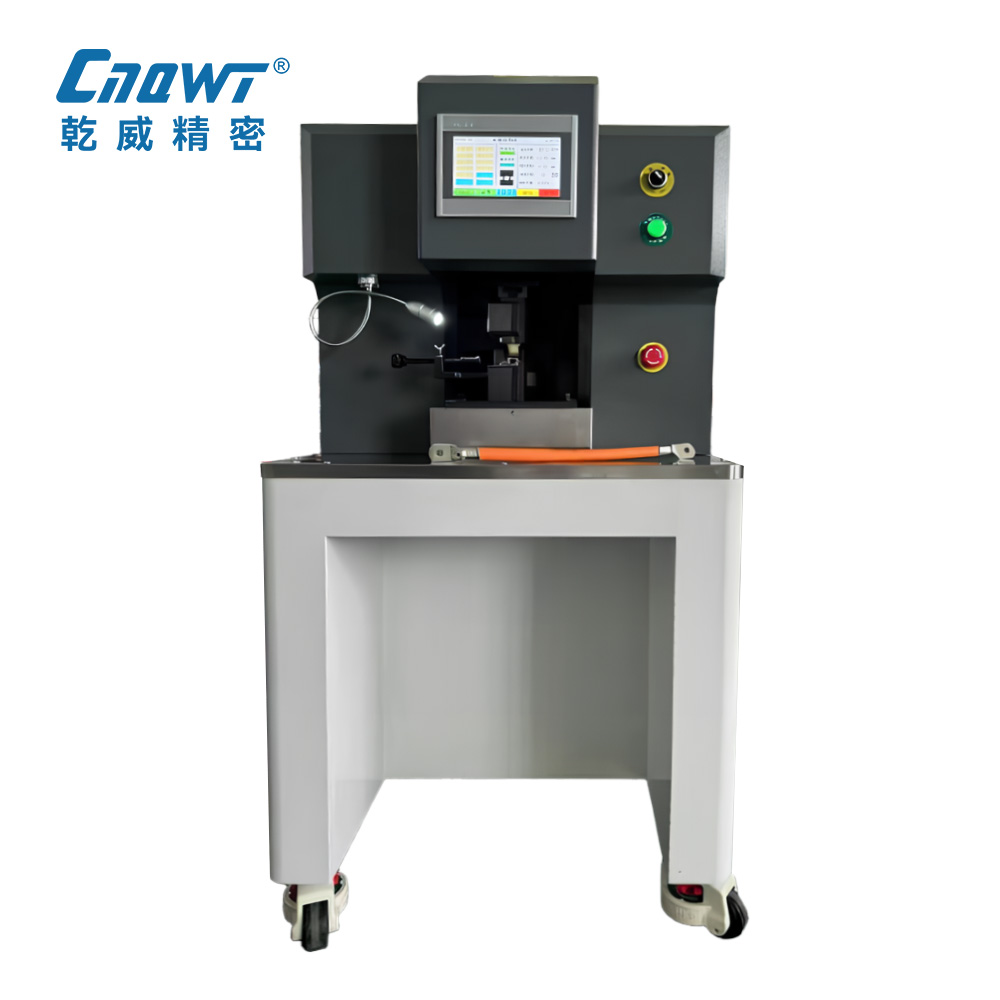

This machine is primarily designed for the automotive industry, new energy sector, power cables, and power cable industries, as well as for crimping applications in electrical control cabinets, battery box wiring, new energy vehicle harnesses, charging station harnesses, and charging gun harnesses. It features a seamless integration of servo motors and PLCs, eliminating the need for manual mold adjustment.
model | FY-30T |
Wire diameter range | 10-300mm² |
pressure | 300KN |
route or distance of travel | 40mm |
crimping width | 12.5mm Customizable 12.5mm Customizable |
weight | 520kg |
source | 220v50Hz |
power | 4500w |
Model Name | HW-30T servo press |
crimping capacity | 30T |
power of motor | 4.5KW servo motor |
reduction box | planetary reducer |
driving mode | ball screw |
ram travel | 60mm |
crimping accuracy | ±0.03mm |
crimping control | numerical control |
moulding tool | Hexagonal mold with no need for mold replacement, M-type mold, OPT mold, four-point mold |
navar | Motion control board + touch screen control |
aerodynamic mode | pedal actuator |
source | 220V 50-60Hz |
velocity | 10-30 items per minute |
Size and weight | 740X740X1500 (without protrusions) 500kg |
Single Channel Pressure Management of Japanese Soro | Detect wire breakage to trigger pressure management alarm and machine shutdown. Connect to the computer host for pressure management data export. |
Overview
| Series: | E/TE/RV/RNB/SV/SNB/PTV/PTV/PTN/DBV/DBE/DBN/BV /BN/MDD/FDD/MPD/FRD/FDFD/PBDD/LBV/FSV/LSV /LSNB/HV/HNB/BNYF/FLDNY/FDFN/SC |
| Surface treatment: | pass salt spray testing,electrophoresis,passivating,deburring,polishing,brush |
| Material: | copper/pvc/nylon |
| Color: | red,green,brown,yellow,blue,gray,black |
| Package: | plastic bags,box,export carton and any other customized package according to the customers requests |
| Test: | salt and spray test,tensile test et |
| Application: | all different kinds of telecom products,automotive,high-end digital cameras,medical equipment,remote,washing machines,vacuum cleaners,desk lamp,furniture,swich power supply,socket,water heater,high-end toys,calculator,electrical,inrerphone,wireless mouse,wifi router,cordless telephone,mobile,mobile dvd,sounder.Auto clutch,bicycle brake,scooter and so on |
| Quotation: | please provide the formal drawings(nomally,with dwg,stp,pdf,file)and make note with material,quantity,surface treatment and any other requirements,we will provide you the quotation sheet in 24-72 hours |
