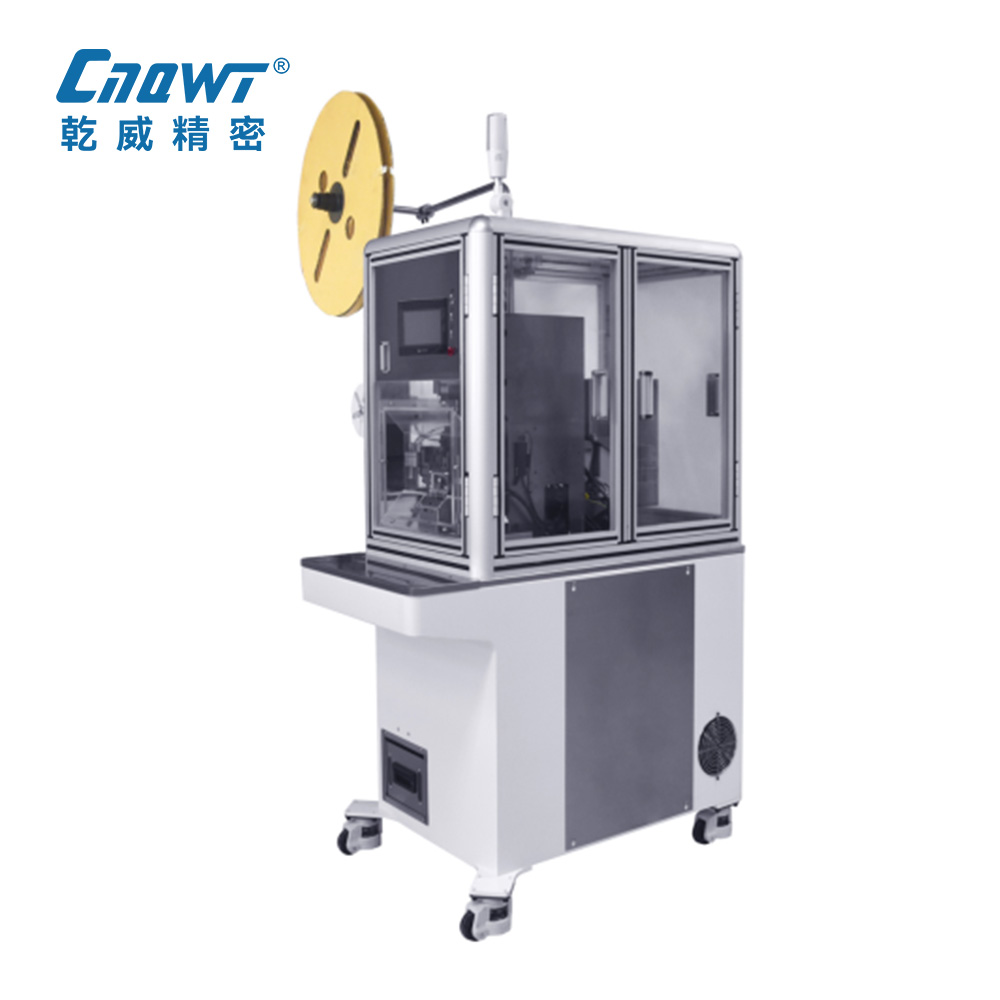

Waterproof Plug Machine for Peeling and Cutting Ends

The machine uses linear module to integrate the three processes of waterproof bolt insertion, peeling, and crimping into a single sequence. It saves manpower, improves labor efficiency, and the parameters can be saved and adjusted.

Features:

• The length of the skinning can be adjusted according to the data.
• Adjust the depth of the waterproof plug based on the adhesive retention data between the peel and the plug.
• The depth of the end package adhesive can also be adjusted according to the top line position.
• The terminal machine is driven by a high-efficiency   servo motor, enabling high-speed stamping with stable pressure.
• The peeling slide is driven by a lead screw to ensure accurate peeling length.
• The cutting mechanism employs a motor-driven lead screw transmission system, with adjustable cutting depth through data input.
• The waterproof seal feeder features a simple and easy-to-replace structure, meeting customers' requirements for diverse product types and varieties.
• The machine is simple to operate, stable in quality, and has a centralized power station.

Supply

Power source: AC 200V,50Hz
Air source: 0.5~0.7 MPa
Body dimensions: 850*880*1300mm

Total weight: 300KG

Processing wire

Applicable wire diameter: 0.2-2.5mm²

Processing size

Stripping length 0mm-10.0mm

Tangent error ±0.02mm

Focus on pressure

Crimping capacity: 3T

 Line: 40mm

CT :   3s

Production capacity: 1000-1200 units/hour

Applicable waterproof plug: ≤10×10
