전기 단자는 전기 시스템에서 가장 작은 구성 요소 중 하나입니다., yet they play a critical role in ensuring safety, 신뢰할 수 있음, 성능. 자동차 배선 하니스 여부, 산업 자동화 장비, 에너지 저장 시스템, 가전제품, or AI data centers, electrical terminals provide the secure connections required for efficient power and signal transmission.

A poorly selected or improperly installed terminal can result in increased contact resistance, 과열, 전압 강하, 장비 고장, 심지어 안전사고까지. 엔지니어용, 구매 관리자, and OEM manufacturers, understanding terminal types, 재료, and application requirements is essential for making informed decisions.

This comprehensive guide explores the fundamentals of electrical terminals, their classifications, 재료, 애플리케이션, 테스트 방법, and selection criteria to help you choose the right terminal solution for your project.

전기 터미널이란??

An electrical terminal is a conductive connector attached to the end of a wire, cable, or conductor to establish a secure connection with another electrical component, 나사 같은 것, 마개, 계전기, 터미널 블록, 부스바, connector housing, 또는 PCB.

Electrical terminals serve as the interface between conductors and electrical equipment, ensuring stable current flow while maintaining mechanical integrity.

전기 터미널 작동 방식

Electrical terminals create an electrical pathway between conductors and equipment by providing:

• Low-resistance electrical contact
• 기계적 유지
• 진동 저항
• 환경 보호

응용 프로그램에 따라, terminals may be attached through:

• 압착
• 납땜
• Welding
• Screw fastening
• Spring clamp systems

전기단말기의 핵심기능

Provide Reliable Electrical Conductivity

Terminals ensure current flows efficiently with minimal resistance.

Deliver Mechanical Strength

A properly installed terminal prevents wire pull-out and maintains connection stability.

Improve Safety

Insulated terminals help prevent accidental short circuits and electrical shocks.

Simplify Maintenance

Terminals allow faster installation, 대사, and troubleshooting compared to direct wire connections.

Why Electrical Terminals Are Important

Electrical systems are becoming increasingly complex and power-intensive. 결과적으로, connection reliability has become more critical than ever.

Ensuring Reliable Electrical Connections

Stable connections reduce the risk of intermittent failures and equipment downtime.

Reducing Contact Resistance

Poor contact surfaces generate heat and waste energy. High-quality terminals minimize resistance and improve efficiency.

Improving Safety and System Stability

Reliable terminals reduce risks associated with loose connections, 아크, 그리고 과열.

Simplifying Maintenance and Replacement

Many terminal designs enable quick replacement without rewiring the entire system.

Supporting High-Current and High-Voltage Applications

Modern EVs, battery energy storage systems, and AI data centers require terminals capable of carrying hundreds of amps safely.

전기 터미널의 주요 카테고리

Electrical terminals are generally divided into insulated and non-insulated types.

절연 터미널

Insulated terminals feature a protective sleeve covering part of the metal connector.

Common Insulation Materials

PVC (폴리염화비닐)

• 비용 효율적
• 널리 사용됨
• Suitable for general-purpose applications

나일론

• 내구성 향상
• Better temperature resistance
• 유연성 향상

Heat-Shrink Insulation

• Excellent sealing performance
• Enhanced moisture protection
• 우수한 스트레인 릴리프

Advantages of Insulated Terminals

• Enhanced safety
• Protection against moisture and dust
• Reduced corrosion risk
• Better wire support
• 향상된 진동 저항

일반적인 응용 분야

• 자동차 배선 하니스
• 해양 장비
• 가전제품
• 가전제품
• 실외 전기 시스템

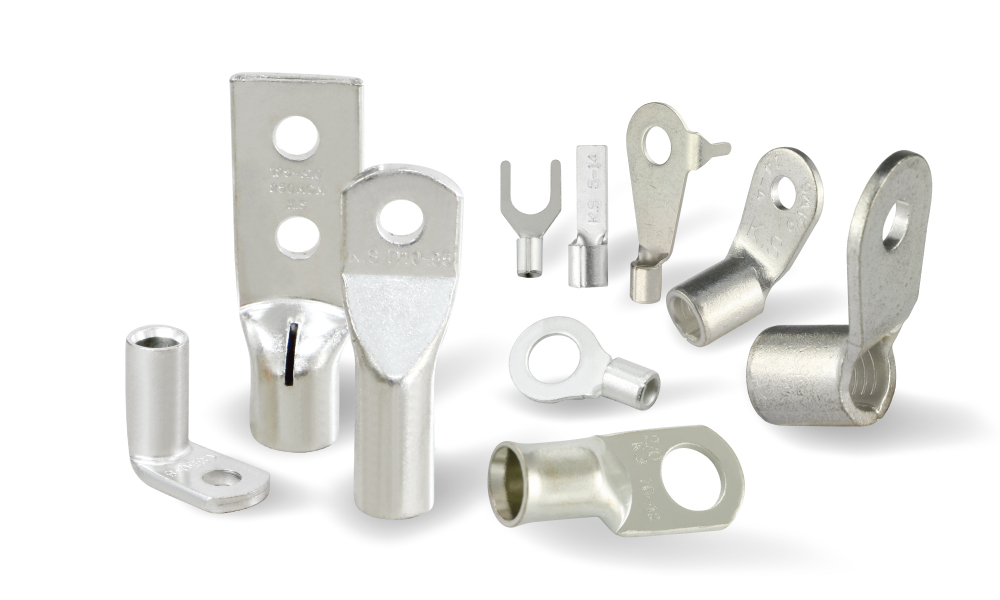

비절연 단자

Non-insulated terminals consist of exposed metal without protective sleeves.

장점

• 비용 절감
• 컴팩트한 사이즈
• Better fit in confined spaces
• Flexible insulation options

제한사항

• Lower protection against accidental contact
• Additional insulation may be required

일반적인 응용 분야

• 제어 캐비닛
• 산업기계
• 전기 패널
• Internal equipment wiring

절연 및 비절연 단자

특징	절연	비절연
안전	훌륭한	보통의
비용	더 높은	낮추다
설치	Easier	Requires care
환경 보호	더 나은	제한된
Space Efficiency	보통의	훌륭한

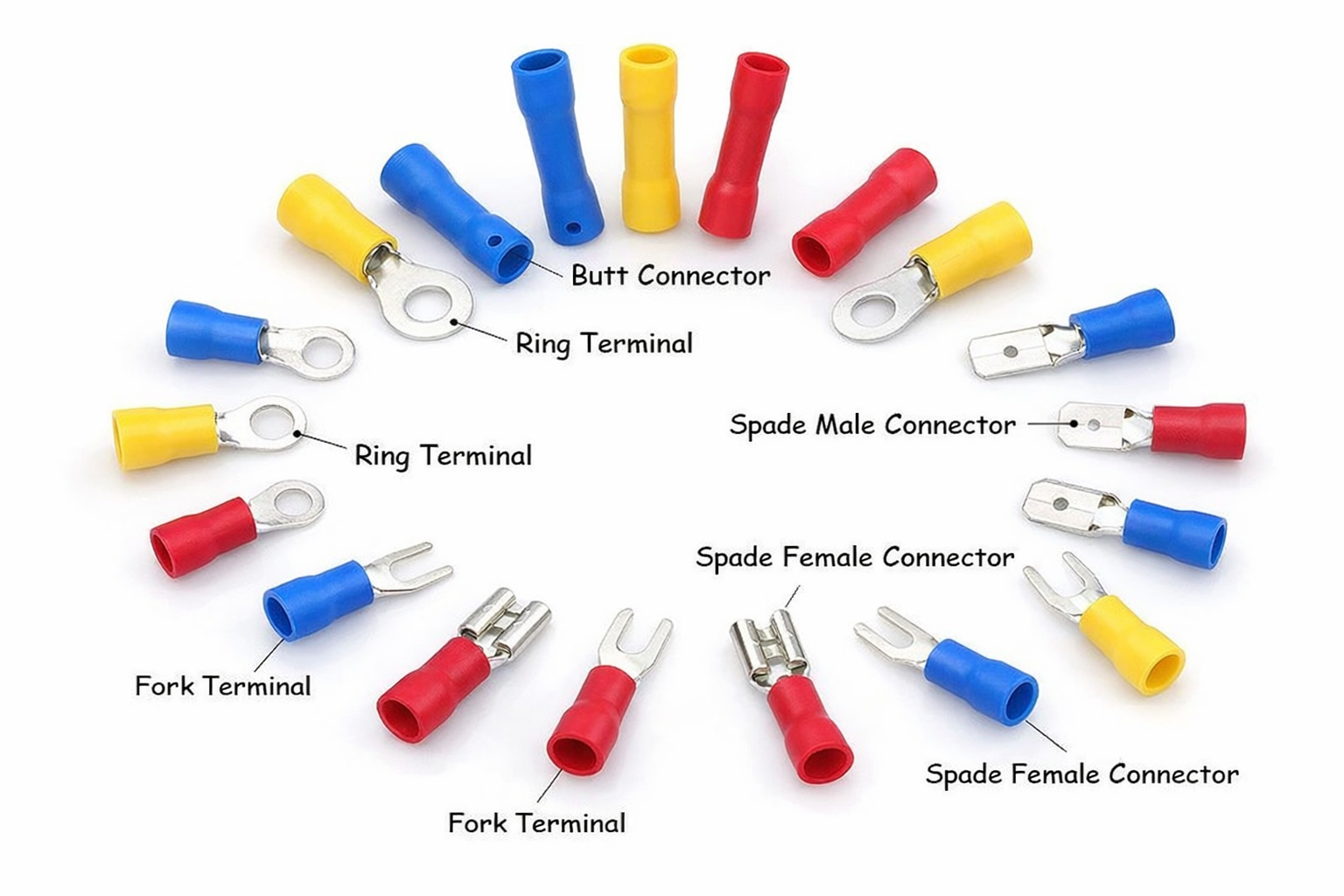

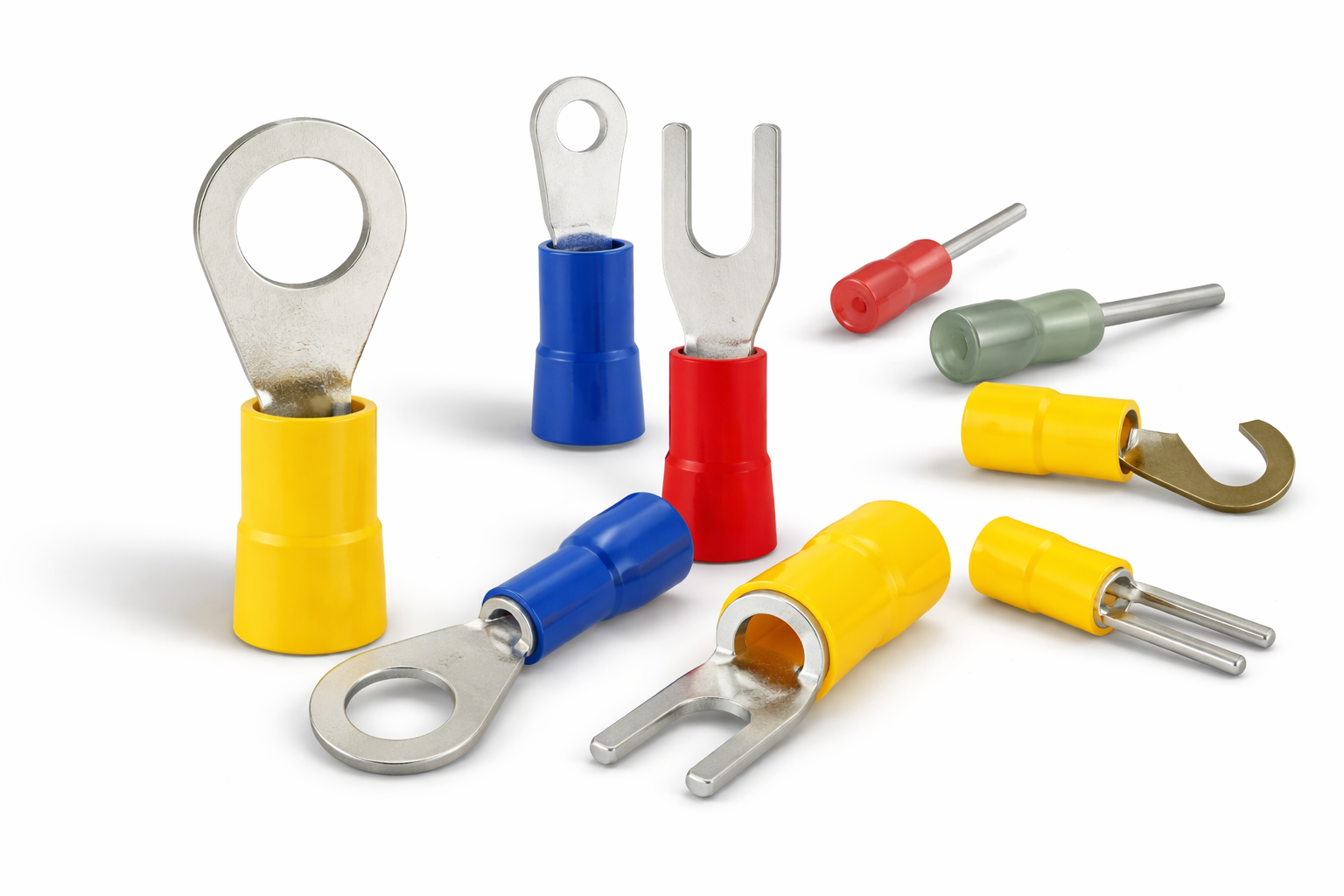

일반적인 유형의 전기 단자

Different terminal designs are optimized for different installation methods and operating environments.

링 터미널

Ring terminals feature a fully enclosed circular connection point.

이익

• 매우 안전한 연결
• 높은 진동 저항
• Excellent pull-out strength
• Suitable for high-current circuits

응용

• 배터리 연결
• 접지 시스템
• 배전반
• 산업용 장비

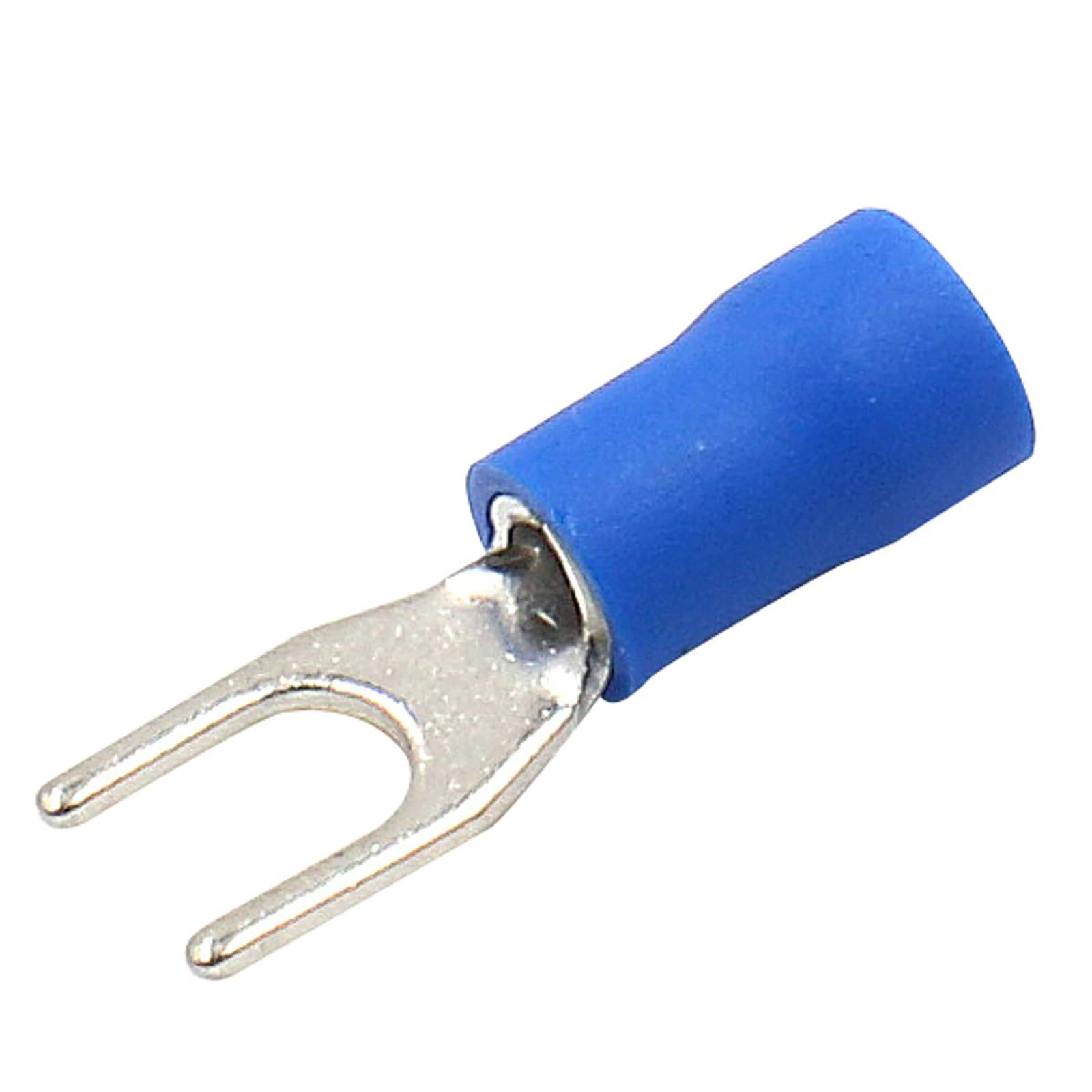

스페이드 (포크) 터미널

Spade terminals use an open-ended fork design.

이익

• 빠른 설치
• 유지관리 용이
• No need to fully remove mounting screws

응용

• 제어판
• 전기 캐비닛
• 기기 배선

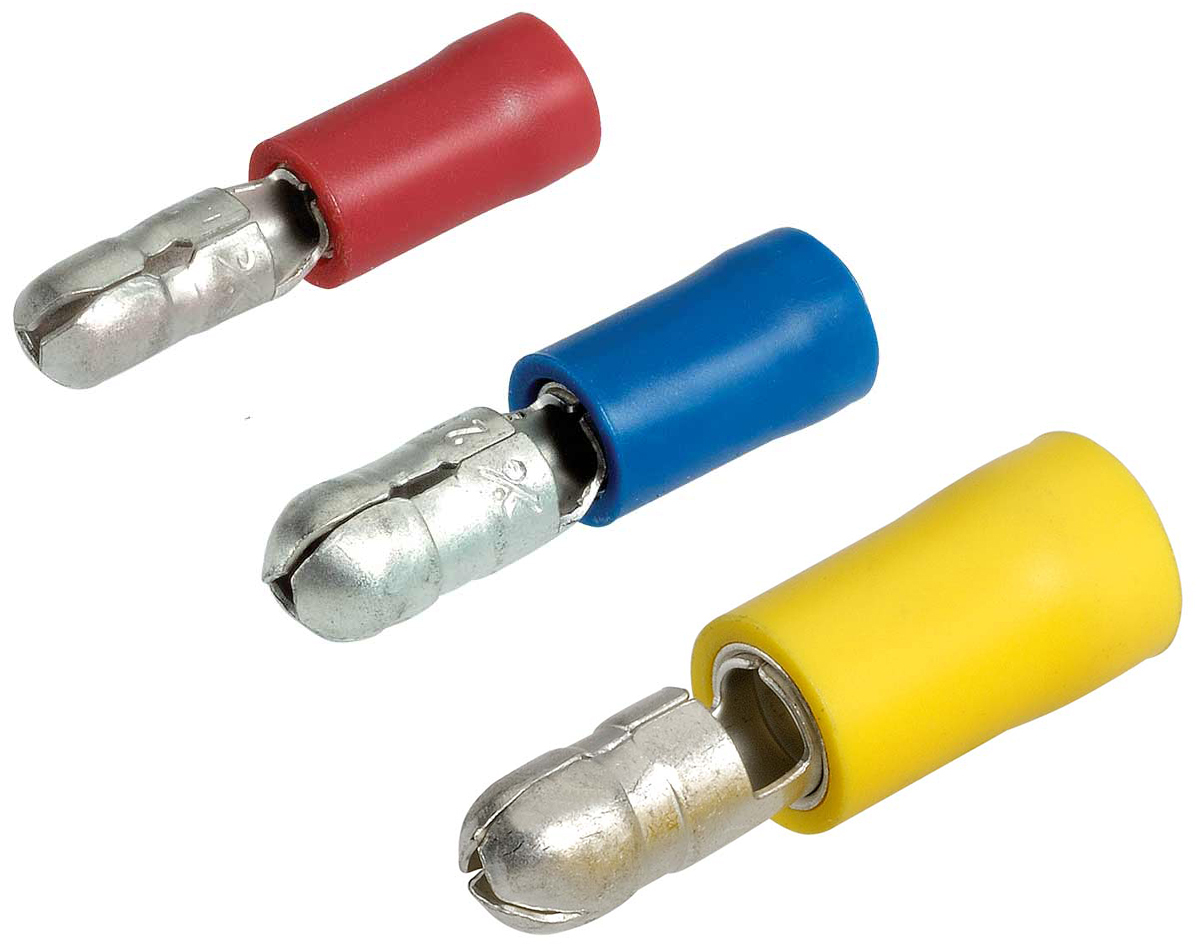

총알 터미널

Bullet terminals consist of a male and female connector pair.

이익

• Quick connect/disconnect
• 컴팩트한 디자인
• Reduced contamination exposure

응용

• 자동차 하네스
• Motorcycles
• 해양 시스템

맞대기 스플라이스 커넥터

Butt connectors join two wires end-to-end.

이익

• 완전 밀폐형 연결
• 강력한 기계적 유지력
• 안정적인 전도성

응용

• 전선 수리
• 하네스 확장
• Maintenance work

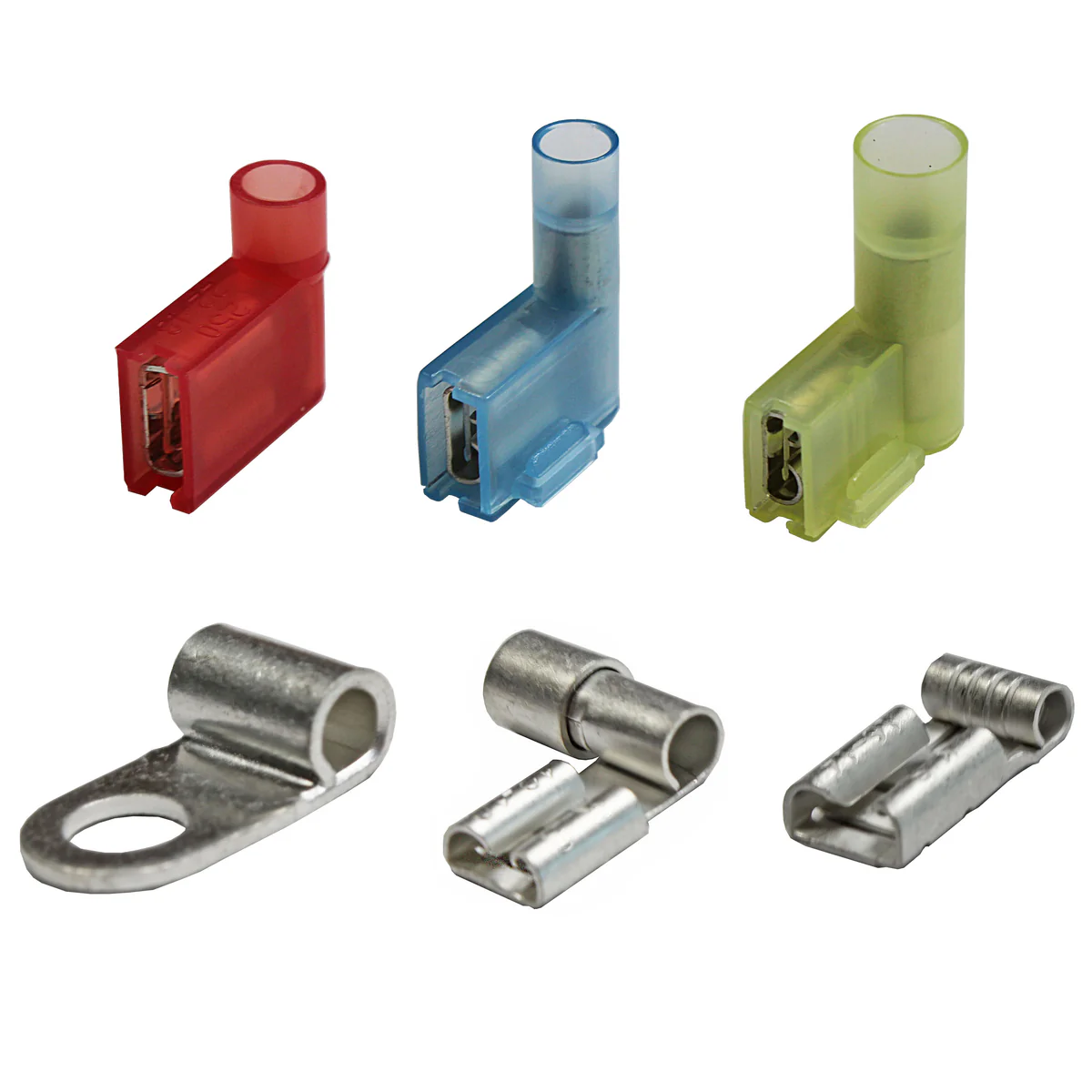

플래그 터미널

Flag terminals provide a 90-degree wire exit angle.

이익

• Space-saving design
• Improved cable routing
• Reduced wire stress

응용

• Automotive modules
• 가전제품
• Compact electronic assemblies

핀 터미널

핀 터미널은 터미널 블록에 삽입되도록 설계되었습니다..

이익

• Secure insertion
• Improved conductor organization

응용

• PLC 시스템
• 제어 캐비닛
• 산업 자동화

빠른 연결 해제 터미널

Quick disconnect terminals enable tool-free connection and removal.

이익

• 빠른 조립
• Simplified maintenance
• 가동 중지 시간 감소

응용

• 가전제품
• 산업용 장비
• 자동차 시스템

Electrical Terminal Materials Explained

재료 선택은 전도도에 직접적인 영향을 미칩니다, 내식성, 내구성, 그리고 비용.

구리 터미널

Copper is widely regarded as the best conductor among commonly used terminal materials.

장점

• 우수한 전도성
• 높은 전류 전달 용량
• Superior thermal performance

응용

• 배터리 단자
• 에너지 저장 시스템
• High-current equipment

황동 터미널

Brass combines copper and zinc to improve strength.

장점

• 좋은 전도성
• 더 나은 기계적 강도
• 비용 효율적

응용

• 가전제품
• 커넥터
• 자동차 시스템

인청동 터미널

Phosphor bronze offers improved elasticity and fatigue resistance.

장점

• 우수한 스프링 특성
• High wear resistance
• 긴 서비스 수명

응용

• 커넥터 접점
• 신호 전송 시스템
• 정밀 전자

알루미늄 터미널

Aluminum provides lightweight and economical solutions.

장점

• 비용 절감
• 경량
• Suitable for large conductors

응용

• 동력 전달
• Utility infrastructure
• Large-scale energy projects

Surface Plating Options for Electrical Terminals

Surface plating improves corrosion resistance and electrical performance.

주석 도금

The most widely used plating option.

이익

• 비용 효율적
• 좋은 전도성
• 우수한 납땜성
• 부식 방지

니켈 도금

이익

• High wear resistance
• Elevated temperature performance
• Strong corrosion protection

실버 도금

이익

• 뛰어난 전도성
• Excellent high-current performance

응용

• 배전
• 고전류 시스템

금도금

이익

• Exceptional corrosion resistance
• Stable low-resistance contacts

응용

• 항공우주
• 의료 장비
• 정밀 전자

Plating Comparison

도금	전도도	부식 저항	비용
주석	좋은	좋은	낮은
니켈	보통의	훌륭한	중간
은	훌륭한	좋은	높은
금	훌륭한	훌륭한	매우 높음

Electrical Terminal Applications by Industry

자동차 배선 하니스

현대 자동차에는 수천 개의 전기 연결이 포함되어 있습니다..

일반적인 터미널 유형은 다음과 같습니다.:

• 링 터미널
• 총알 터미널
• 방수 단자
• 압착 단자

에너지 저장 시스템 (ESS)

Battery energy storage systems require high-current connections.

Key requirements include:

• 낮은 저항
• 열 안정성
• 진동 저항

Copper and tin-plated terminals are widely used.

Electric Vehicle Battery Packs

EV battery systems demand:

• High-current capacity
• 컴팩트한 디자인
• Excellent thermal performance

Specialized battery terminals and busbar connections are essential.

산업 자동화 장비

Automation systems require reliable signal and power transmission.

응용 프로그램은 다음과 같습니다:

• PLC cabinets
• 로봇공학
• 센서
• 산업 제어

가전제품

Miniaturized terminals support compact device designs while maintaining reliability.

통신 장비

Communication infrastructure requires stable signal transmission and corrosion resistance.

AI Data Centers

AI servers and GPU clusters consume enormous amounts of power.

High-current terminals are increasingly used in:

• Power distribution units
• Server racks
• Battery backup systems
• UPS equipment

This sector is becoming one of the fastest-growing markets for precision electrical terminals.

올바른 전기 단자를 선택하는 방법

Selecting the correct terminal involves multiple engineering considerations.

현재 등급

The terminal must safely carry the required current without overheating.

전압 정격

Ensure compliance with system voltage requirements.

와이어 게이지 호환성

The terminal barrel size must match conductor dimensions.

환경 조건

온도

Consider operating and peak temperatures.

수분

Waterproof solutions may be required.

약

Corrosion-resistant materials are necessary in harsh environments.

진동

Automotive and industrial systems often require enhanced retention strength.

설치 방법

Crimp Connections

The most common method due to speed and reliability.

Solder Connections

Suitable for specialized electronics applications.

Screw Connections

Common in industrial and control panel installations.

Common Causes of Electrical Terminal Failure

Understanding failure modes helps improve system reliability.

부적절한 압착

Poor crimp quality creates resistance and weak mechanical retention.

부식

Environmental exposure degrades electrical contact surfaces.

과열

Excess current can damage terminals and insulation.

느슨한 연결

Vibration and thermal cycling may loosen improperly secured terminals.

진동 손상

Repeated movement causes fatigue and eventual failure.

Material Fatigue

Long-term mechanical stress weakens terminal structures.

Electrical Terminal Testing and Quality Control

Quality testing ensures performance and reliability.

인발력 테스트

Measures wire retention strength.

접촉 저항 테스트

Evaluates electrical conductivity.

염수 분무 테스트

내식성 평가.

열 순환 테스트

Verifies performance under repeated temperature changes.

진동 테스트

Simulates real-world operating conditions.

치수검사

Ensures compliance with engineering specifications.

Future Trends in Electrical Terminal Technology

The electrical connection industry continues to evolve rapidly.

High-Current Terminals for Energy Storage

Growing renewable energy deployment is increasing demand for high-current connections.

AI Data Center Power Connectivity

AI infrastructure requires higher power density and improved thermal performance.

Miniaturized Electronics

Smaller devices demand compact terminal solutions without sacrificing reliability.

Smart Manufacturing

Advanced stamping technologies improve precision and consistency.

Sustainable Materials and Plating

Manufacturers are adopting environmentally friendly production processes.

왜 선택해야 할까요? 첸웨이 정밀 for Electrical Terminal Manufacturing

Choosing the right manufacturing partner is as important as selecting the right terminal.

정밀 스탬핑 전문성

Qianwei specializes in high-precision metal stamping for electrical terminals and connector contacts.

맞춤형 터미널 개발

Customized solutions are available based on drawings, 샘플, 또는 성능 요구 사항.

OEM and ODM Services

Comprehensive support is provided from concept development to mass production.

고급 금형 설계 기능

In-house tooling expertise ensures consistent quality and shorter lead times.

종합적인 테스트 서비스

Qianwei performs rigorous quality verification, 포함:

• 인발력 테스트
• 접촉 저항 테스트
• 염수 분무 테스트
• 열 순환 테스트
• 진동 테스트
• 치수검사

These testing capabilities help ensure long-term reliability across demanding applications.

결론

Electrical terminals are essential components that directly impact the safety, 신뢰할 수 있음, and performance of electrical systems. From automotive wiring and industrial automation to energy storage systems and AI data centers, selecting the correct terminal type, 재료, and plating solution is critical for long-term success.

By understanding terminal classifications, 신청 요구 사항, material characteristics, and testing standards, engineers and purchasing professionals can make informed decisions that reduce failure risks and improve product reliability.

표준 터미널이 필요한지 맞춤형 엔지니어링 솔루션이 필요한지 여부, partnering with an experienced manufacturer can help optimize performance, reduce costs, and accelerate product development. Qianwei provides precision terminal manufacturing, custom development, and comprehensive testing services to support a wide range of industries worldwide.

FAQ

전기 터미널이란 무엇입니까??

An electrical terminal is a conductive connector used to securely connect wires or cables to electrical equipment.

What are the main types of electrical terminals?

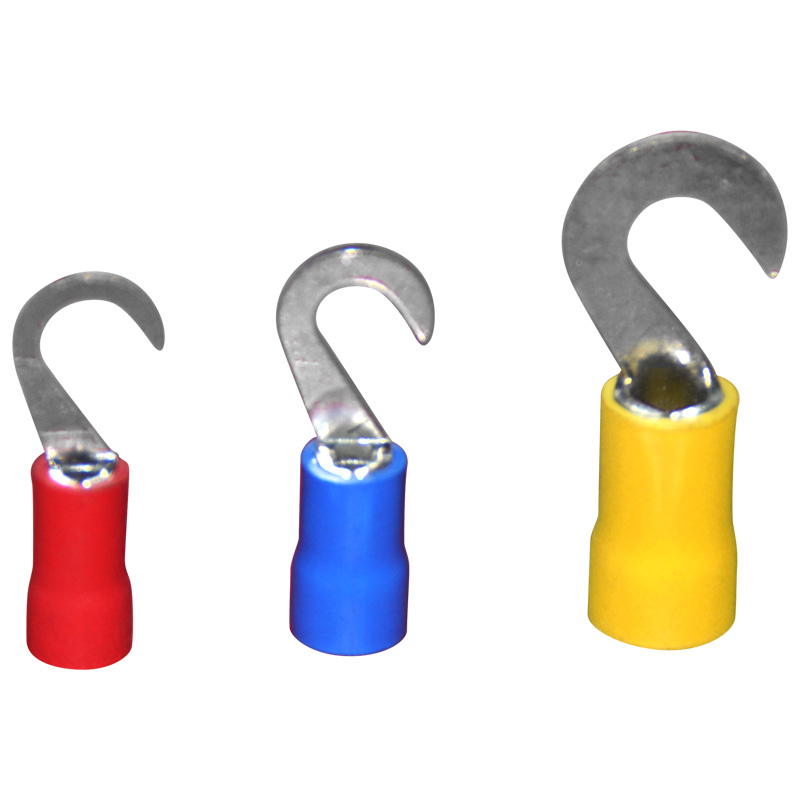

일반적인 유형에는 링 터미널이 포함됩니다., 스페이드 터미널, hook terminals, bullet terminals, 엉덩이 커넥터, flag terminals, 핀 터미널, and quick disconnect terminals.

절연 단자와 비절연 단자의 차이점은 무엇입니까??

Insulated terminals provide additional protection against electrical contact and environmental exposure, while non-insulated terminals are more compact and cost-effective.

전기 단자에 가장 적합한 재료는 무엇입니까??

Copper is generally preferred for high-conductivity applications, while brass and phosphor bronze offer additional mechanical advantages.

Why is tin plating commonly used on terminals?

주석 도금으로 내식성 향상, 전도도, and solderability while remaining cost-effective.

What causes electrical terminal failure?

Common causes include improper crimping, 부식, 과열, 진동 손상, 느슨한 연결, and material fatigue.

How are electrical terminals tested?

Typical tests include pull-out force testing, contact resistance testing, 열 순환, 염수 분무 테스트, 진동 테스트, and dimensional inspection.

What terminals are used in energy storage systems?

고전류 구리 단자, 배터리 단자, 부스바 터미널, and tin-plated terminals are commonly used.

전기 단자를 맞춤 설정할 수 있나요??

예. Custom terminals can be designed based on wire size, 현재 요구사항, 설치 방법, and application environments.

Which industries use electrical terminals?

Electrical terminals are widely used in automotive, 에너지 저장, 산업 자동화, 통신, 가전제품, and AI data center applications.
