Why Cold Welding Matters in Crimping
압착 is one of the most widely used methods for creating electrical connections in wire harnesses, 자동차 시스템, 산업 설비, 그리고 가전제품. 하지만, not all crimped connections are equal. Some deliver long-term reliability, while others fail due to resistance, 과열, or mechanical weakness.
The key factor that determines the quality of a crimped connection is cold welding.
In terminal crimping, cold welding is what transforms a simple mechanical compression into a 고성능, 기밀 전기 연결. Without it, even a visually acceptable crimp can fail under real-world conditions.
이 가이드에서는, you will learn:
What cold welding in crimping actually means
How it works at a material level
Why it is critical for electrical reliability
How to ensure consistent cold welding in production

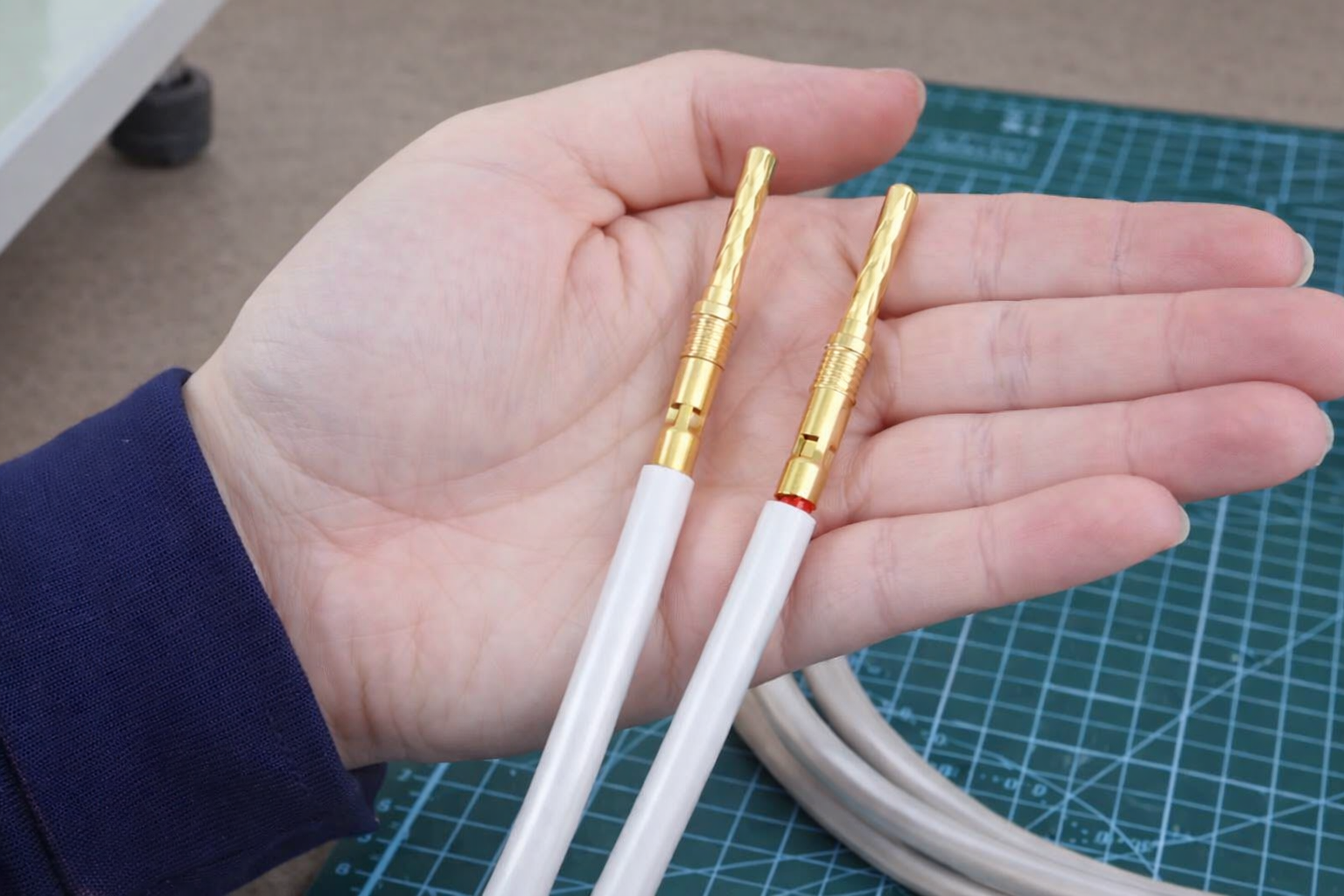

What Is Cold Welding in Terminal Crimping?
Cold welding in terminal crimping refers to the process where the wire strands and terminal material are compressed under high pressure, breaking surface oxides and forming a gas-tight metal-to-metal bond without heat.
이것은 solid-state connection that behaves almost like a single continuous piece of metal, ensuring low electrical resistance and long-term stability.
How Cold Welding Works in Crimping
To understand cold welding, it’s important to look at what happens during the crimping process at a microscopic level.
1. Surface Oxide Breakdown
All metals naturally form oxide layers when exposed to air. These oxides are non-conductive and can prevent proper electrical contact.
During crimping:
High force is applied
The oxide layers on both the wire and terminal are fractured and displaced
2. Plastic Deformation
The conductor strands and terminal barrel undergo plastic deformation:
The metal flows and reshapes
Air gaps are eliminated
The contact area increases dramatically
3. Metal-to-Metal Contact
Once oxides are removed and materials deform:
Clean metal surfaces come into direct contact
Atomic bonding occurs at the interface
4. Gas-Tight Seal Formation
The compressed joint becomes:
Airtight
Moisture-resistant
This prevents:
산화
부식
Electrical degradation over time
주요 통찰력
Cold welding is not just compression—it is controlled deformation that creates a permanent metallurgical bond.
Why Cold Welding Matters for Electrical Connections
Cold welding is the difference between a temporary connection 그리고 믿을 수 있는, long-term electrical interface.
1. Low Electrical Resistance
A properly cold-welded crimp:
Minimizes contact resistance
Ensures efficient current flow
Poor crimping leads to:
Voltage drop
에너지 손실
2. Prevention of Corrosion
Because the connection is gas-tight:
Oxygen and moisture cannot enter
Oxidation is prevented
3. 기계적 강도
Cold welding creates:
High pull-out force
Strong vibration resistance
This is critical in:
자동차 시스템
산업기계
4. Thermal Stability
Bad connections generate heat.
Cold-welded connections:
Maintain stable conductivity
과열 방지
Real-World Failure Example
A crimp without proper cold welding may:
Pass initial inspection
Fail after months due to corrosion or vibration
Conditions Required for Proper Cold Welding
Achieving cold welding is not automatic. It requires precise control of several factors.
1. Correct Crimp Force
Too little force → incomplete oxide breakage
Too much force → conductor damage
Optimal force ensures:
Proper compression
Uniform deformation
2. Terminal Material Quality
Material properties directly impact cold welding:
Copper → excellent conductivity and deformation
Brass → good strength but harder to deform
Surface plating (주석, 은) also affects:
Contact quality
Oxidation resistance
3. Proper Wire Selection
Correct wire gauge must match terminal design
Strand structure influences deformation
Mismatch leads to:
Air gaps
Weak bonding
4. Tooling Precision
Crimping tools must provide:
Consistent pressure
Accurate geometry
Poor tooling results in:
Inconsistent crimps
Variable quality
5. Clean Surfaces
Contaminants such as:
기름
Dirt
산화
Can prevent proper bonding.
What Happens If Cold Welding Is Not Achieved
Failure to achieve cold welding leads to several critical issues.
1. Air Gaps in the Connection
Allow oxygen and moisture to enter
Lead to corrosion
2. Increased Electrical Resistance
전도성이 좋지 않음
Voltage instability
3. 발열
Resistance causes heat buildup
Can lead to insulation damage or fire risk
4. Mechanical Weakness
Low pull-out strength
Higher failure under vibration
5. Long-Term Reliability Issues
Even if the crimp initially works, it may:
Degrade over time
Cause system failure
Cold Welding vs Soldering: 어느 것이 더 나은가?
| 요인 | 압착 (Cold Welding) | 납땜 |
| Electrical resistance | 낮은 | 낮은 (initially) |
| 진동 저항 | 훌륭한 | 가난한 |
| Process consistency | 높은 | 운영자에 따라 다름 |
| Heat impact | 없음 | Can damage insulation |
| 장기적인 신뢰성 | 높은 | 중간 |
결론
대부분의 산업 및 자동차 애플리케이션용, crimping with proper cold welding is superior to soldering.
How to Identify a Good vs Bad Crimp
1. 육안검사
A good crimp should show:
균일한 압축
No exposed strands
No cracks in terminal
2. Pull-Out Test
Measures mechanical strength:
A strong crimp resists separation
Weak crimp fails under load
3. 단면 분석
The most accurate method:
Reveals internal structure
Confirms absence of air gaps
4. 전기 테스트
Low resistance indicates good contact
High resistance signals poor crimp
Key Factors That Affect Cold Welding Quality
This is where many manufacturers fail—and where expertise matters.
1. Terminal Design
Barrel thickness
Geometry
Material hardness
These determine how well deformation occurs.
2. Material Consistency
Variations in:
Alloy composition
Plating thickness
Lead to inconsistent results.
3. Manufacturing Precision
High-quality terminals require:
Tight dimensional tolerances
Consistent stamping quality
4. Process Stability
Mass production requires:
Repeatable crimping conditions
Controlled tooling performance
주요 통찰력
Cold welding quality starts before crimping—it starts with terminal design and manufacturing.
How to Choose the Right Terminal for Reliable Crimping
터미널을 선택할 때, 고려하다:
1. 재료 선택
High-conductivity copper alloys preferred
2. 치수 정확도
Ensures proper fit with wire
3. 호환성
Must match wire gauge and application
4. 표면 처리
Tin plating improves corrosion resistance
5. Production Consistency
Critical for large-scale manufacturing
Why Consistent Cold Welding Depends on Your Supplier
Not all terminal manufacturers can deliver consistent cold welding performance.
신뢰할 수 있는 공급업체가 제공해야 합니다.:
1. 엔지니어링 지원
Terminal design optimization
애플리케이션별 권장 사항
2. Material Control
Stable alloy composition
Controlled plating processes
3. 정밀가공
High-accuracy stamping
Tight tolerance control
4. Quality Validation
Crimp testing
단면 분석
Pull-out force verification
Positioning Insight
A good terminal supplier doesn’t just supply parts—they ensure crimping success in your production line.
결론: Cold Welding Is the Foundation of Reliable Crimping
Cold welding is what transforms a crimped connection into a high-performance electrical interface.
Without it, connections are:
Unstable
Prone to failure
Unsafe in critical applications
With proper cold welding, 당신은 달성:
낮은 저항
고강도
장기적인 신뢰성
The key takeaway:
Reliable crimping is not just about tools or force—it starts with proper terminal design and manufacturing quality.
Get Expert Support for Your Terminal Crimping Projects
~에 첸웨이 정밀, we specialize in designing and manufacturing terminals that ensure consistent cold welding performance in real production environments.
What We Offer
Custom terminal design support
Stable material and plating control
High-precision stamping
Crimp performance validation
FAQ에스
1. Can cold welding be visually confirmed?
Not completely. While visual inspection helps, true cold welding is best verified through cross-section analysis and electrical testing.
2. Does wire type affect cold welding?
예. Strand size, 재료, and structure all influence how well the wire deforms and bonds during crimping.
3. Is higher crimp force always better?
아니요. Excessive force can damage conductors and reduce connection quality. Optimal force is required.
4. Do all terminals support cold welding equally?
아니요. 단자 재질, 설계, and manufacturing quality significantly impact cold welding performance.
5. How does plating affect crimping?
도금 (주석과 같은) improves corrosion resistance but must be controlled to avoid interfering with metal-to-metal bonding.
6. What standards apply to crimping quality?
Common standards include IPC/WHMA-A-620 and UL requirements for electrical connections.
7. Can poor tooling prevent cold welding?
예. Inconsistent or worn tools can result in insufficient compression and unreliable connections.
