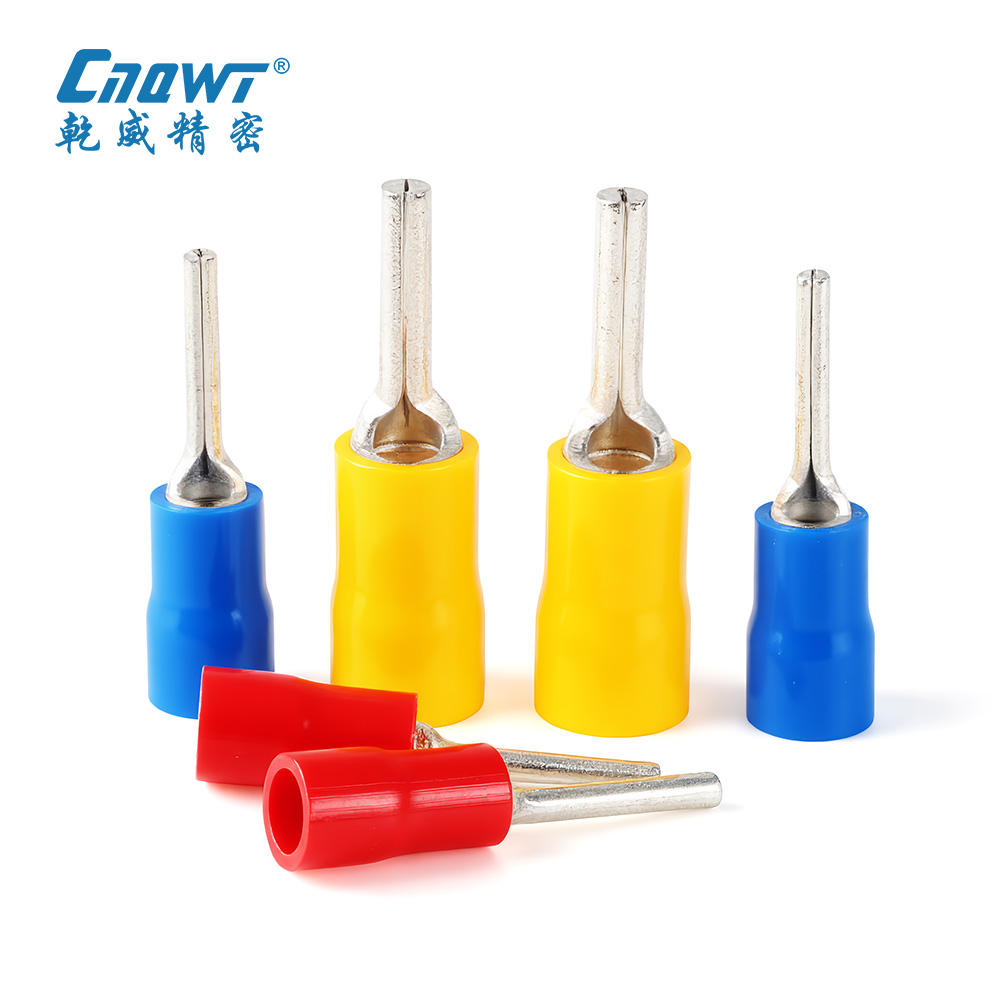

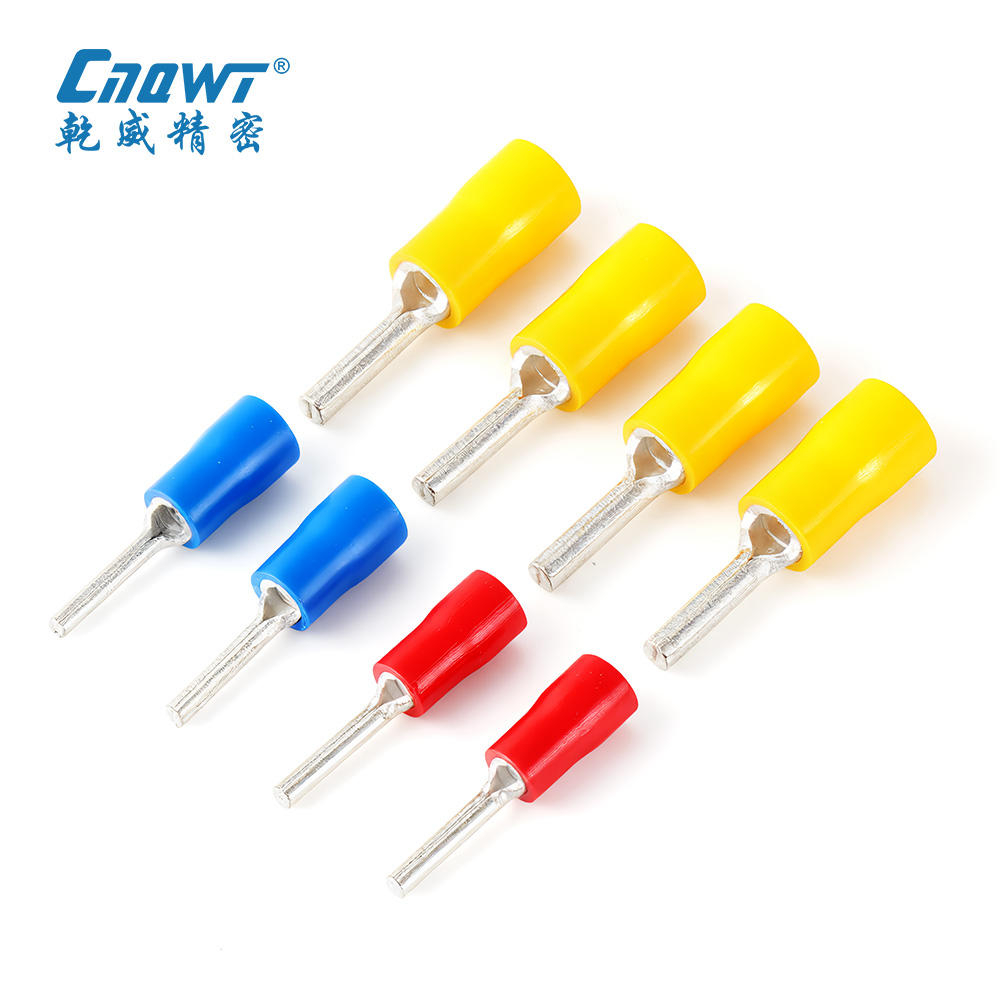

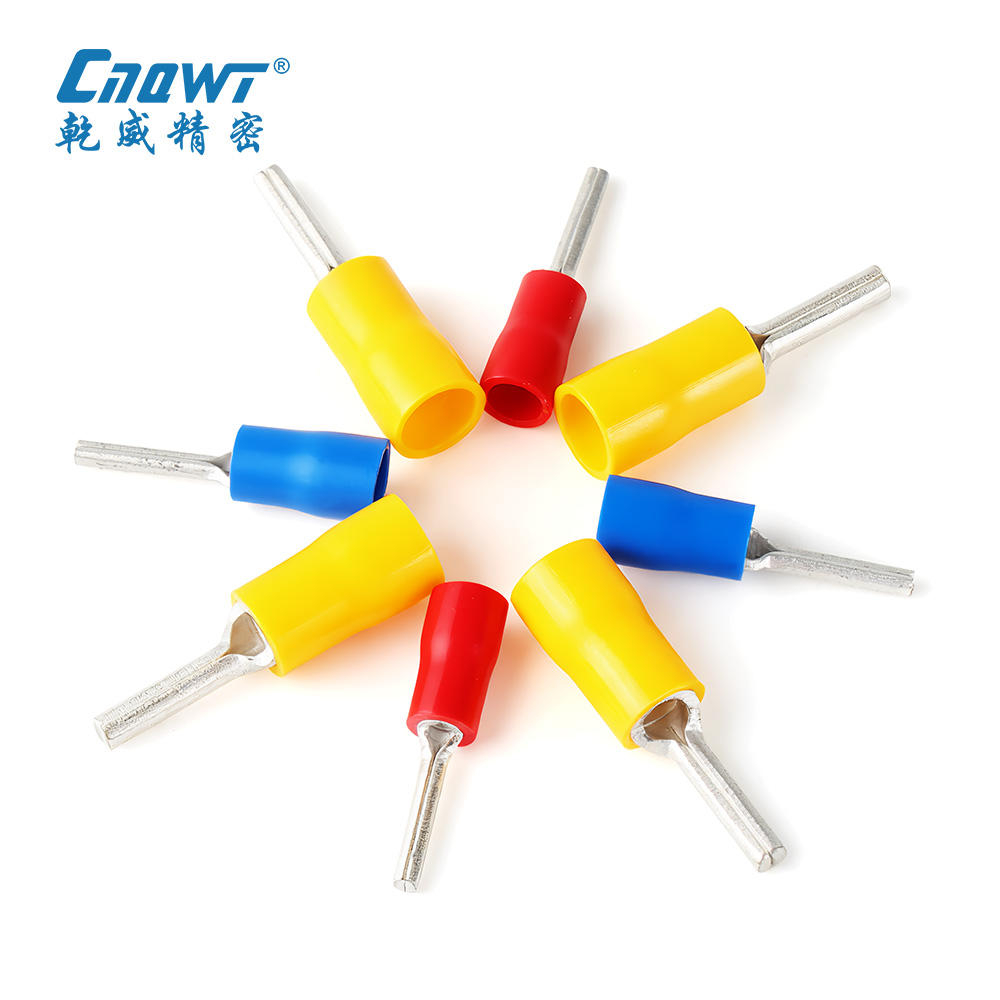

Pin terminals are compact electrical terminals designed to provide secure and organized wire connections, especially for terminal blocks and control systems. Their solid pin structure allows stranded wires to be inserted cleanly into screw terminals, preventing wire fraying and improving connection stability.
Qianwei Precision manufactures high-quality pin terminals with excellent conductivity, precise dimensions, and stable crimping performance for industrial, automotive, consumer electronics, and electrical control applications.
Our pin terminals are engineered for reliable signal and power transmission while supporting efficient wiring assembly and long-term operational stability.
Key Features
Stable Electrical Connection
Pin terminals create a clean and reliable interface between wires and terminal blocks, reducing loose strands and improving conductivity.
Easy Installation
The compact pin structure simplifies insertion into:
- Terminal blocks
- Control panels
- Electrical equipment
Improving assembly efficiency and maintenance convenience.
Excellent Conductivity
Manufactured using high-conductivity copper alloys to ensure:
- Low contact resistance
- Stable current transmission
- Reduced voltage loss
Strong Crimp Retention
Optimized crimp barrel design provides:
- Secure wire retention
- High pull-out force
- Stable long-term performance
Corrosion Resistance
Available with:
- Tin plating
- Nickel plating
For enhanced oxidation and environmental protection.
Product Types
Qianwei Precision offers multiple pin terminal configurations:
| Type | Description |
|---|---|
| Insulated Pin Terminal | PVC or nylon insulated version |
| Non-Insulated Pin Terminal | Compact industrial type |
| Twin Wire Pin Terminal | Supports dual-wire insertion |
| Long Pin Terminal | Extended insertion applications |
| Customized Pin Terminal | OEM/ODM designs available |
Materials & Surface Treatment
| Item | Specification |
|---|---|
| Raw Material | Copper / Brass |
| Plating Options | Tin / Nickel |
| Insulation Material | PVC / Nylon |
| Temperature Range | -40°C to +105°C |
| Wire Range | AWG 26 – AWG 8 |
Technical Advantages
Precision Manufacturing
Produced using high-precision stamping technology to ensure:
- Tight dimensional tolerance
- Smooth edges
- Burr-free structure
Reliable Crimping Performance
Optimized barrel structure provides:
- Uniform compression
- Stable wire retention
- Reduced conductor damage
Consistent Quality
Designed for:
- Automated crimping systems
- High-volume wire harness production
Ensuring stable mass production quality.
Applications
Pin terminals are widely used in electrical systems that require organized, stable, and space-efficient wire connections. Their solid pin structure allows stranded wires to be inserted cleanly into terminal blocks and screw-clamp connectors, improving both electrical reliability and assembly efficiency.
Compared with inserting bare stranded wires directly into terminals, pin terminals provide:
- Better wire organization
- Reduced strand damage
- More stable conductivity
- Faster installation and maintenance
Because of these advantages, pin terminals are extensively used in industrial automation, electrical control systems, automotive electronics, renewable energy equipment, and consumer electronics.
Industrial Control Panels
Industrial control panels are one of the most common application areas for pin terminals.
Used in:
- PLC systems
- Automation equipment
- Industrial machinery
- Electrical cabinets
- Relay control systems
- Sensor wiring
In industrial environments, wiring systems must remain organized, reliable, and easy to maintain. Pin terminals help technicians achieve cleaner wire routing while ensuring stable insertion into terminal blocks.
Why Pin Terminals Are Important in Control Panels
Without pin terminals:
- Wire strands may spread during installation
- Loose strands can create short-circuit risks
- Connection quality becomes inconsistent
Pin terminals solve these issues by creating a compact and solid connection point.
Key Benefits for Industrial Applications
- Faster assembly
- Reduced maintenance time
- Improved electrical stability
- Better vibration resistance
- Cleaner cabinet layout
For automated production environments, consistent connection quality is critical for reducing equipment downtime and improving operational reliability.
Terminal Block Connections
Pin terminals are specifically designed for terminal block systems.
Commonly used in:
- Screw-clamp terminal blocks
- Spring terminal systems
- DIN rail electrical assemblies
Advantages in Terminal Blocks
The pin structure allows stranded wires to be inserted smoothly without deformation, helping to:
- Improve contact reliability
- Prevent loose wire strands
- Reduce installation errors
This is especially important in high-density wiring systems where clean and organized cable management is required.
Applications Include
- Building electrical systems
- Power distribution cabinets
- Machine control systems
- Low-voltage electrical panels
In professional electrical installations, pin terminals are often considered a best-practice solution for improving long-term connection reliability.
Industrial Automation Systems
Modern automation equipment relies heavily on stable signal and power transmission.
Pin terminals are commonly used in:
- Robotic systems
- Automated production lines
- Servo control systems
- Industrial sensors
- Motion control equipment
Automation systems often involve:
- Frequent vibration
- Complex wiring layouts
- Continuous operation
Pin terminals help maintain stable electrical connections while simplifying installation and troubleshooting.
Why They Matter in Automation
A poor connection in automation equipment can result in:
- Signal interruption
- Equipment malfunction
- Production downtime
High-quality pin terminals help reduce these risks through stable crimping and reliable insertion performance.
Consumer Electronics
In consumer electronics, pin terminals are widely used for compact and efficient internal wiring connections.
Applications include:
- Smart home devices
- Household appliances
- Audio systems
- Power adapters
- Internal PCB wiring systems
Advantages for Electronics Manufacturers
- Compact size
- Fast assembly
- Stable low-voltage conductivity
- Suitable for automated production
As electronic products become smaller and more integrated, compact terminal solutions are increasingly important.
Qianwei Precision pin terminals are manufactured with tight dimensional tolerances to ensure compatibility with modern electronic assembly systems.
Home Appliances
Pin terminals are frequently used in home appliances requiring organized internal wiring.
Typical applications:
- Air conditioners
- Refrigerators
- Washing machines
- Water heaters
- Kitchen appliances
These systems often operate under:
- Continuous electrical load
- Temperature variation
- Long-term use conditions
Pin terminals help improve:
- Connection stability
- Wiring organization
- Manufacturing efficiency
Insulated pin terminals are particularly popular in appliance systems because they improve electrical safety and reduce accidental short-circuit risks.
Automotive Electrical Systems
In automotive applications, pin terminals are used for low-voltage and signal-related wiring systems.
Applications include:
- ECU wiring
- Sensor systems
- Dashboard electronics
- Lighting controls
- Auxiliary electrical circuits
Automotive environments require terminals capable of withstanding:
- Vibration
- Temperature fluctuation
- Humidity exposure
Qianwei Precision pin terminals are designed to maintain stable electrical contact and reliable crimp retention under demanding vehicle operating conditions.
Renewable Energy Systems
Renewable energy equipment requires reliable electrical connections capable of long-term stable operation.
Pin terminals are used in:
- Solar inverter control systems
- Battery energy storage systems
- Power monitoring equipment
- Electrical distribution panels
Key Requirements
- Corrosion resistance
- Stable conductivity
- Long service life
Tin-plated pin terminals are often preferred in renewable energy systems because they provide enhanced oxidation resistance in outdoor or high-humidity environments.
Telecommunications & Data Equipment
Pin terminals are also used in:
- Communication control systems
- Network equipment
- Low-voltage signal transmission modules
These applications require:
- Precise electrical contact
- Stable signal transmission
- Compact installation design
Reliable terminal performance helps ensure uninterrupted communication and system stability.
Why Pin Terminals Matter
Compared with bare stranded wire insertion, pin terminals provide:
- Cleaner wiring
- Improved connection reliability
- Easier maintenance
- Reduced installation errors
They are especially valuable in systems requiring:
- Frequent maintenance
- Organized wiring layouts
- Stable low-voltage connections
Quality Control & Testing
Each pin terminal undergoes strict quality inspection procedures.
Mechanical Testing
- Crimp pull-out force testing
- Compression consistency verification
Electrical Testing
- Conductivity testing
- Contact resistance inspection
Surface Inspection
- Burr detection
- Plating thickness inspection
- Dimensional verification
Compliance & Standards
Qianwei Precision pin terminals can comply with:
- RoHS
- REACH
- ISO 9001
- IATF 16949
Customization Capability
We support customized pin terminal solutions including:
- Custom dimensions
- Special plating thickness
- Dual-wire designs
- Special insulation colors
- High-conductivity requirements
With over 1800+ production molds, Qianwei Precision provides flexible OEM/ODM support for global customers.
Why Choose Qianwei Precision?
Advanced Precision Manufacturing
- High-speed stamping production
- Stable dimensional control
Reliable Product Quality
- Strict quality inspection process
- Consistent mass production capability
Extensive Industry Experience
Serving customers in:
- Industrial automation
- Automotive
- Consumer electronics
- Electrical control systems
Contact Qianwei Precision
Looking for reliable pin terminal solutions?
- Request free samples
- Get engineering support
- Customize your terminal design
Contact Qianwei Precision today for high-performance electrical connection solutions.
FAQ
What is a pin terminal used for?
Pin terminals are used to connect stranded wires into terminal blocks and electrical control systems while preventing wire fraying.
Are pin terminals suitable for terminal blocks?
Yes. Pin terminals are specifically designed for organized and secure terminal block connections.
What materials are used for pin terminals?
Pin terminals are commonly made from copper or brass with tin or nickel plating.
What is the advantage of insulated pin terminals?
Insulated pin terminals improve electrical safety and reduce the risk of accidental short circuits.
Can pin terminals be customized?
Yes. Qianwei Precision supports custom pin terminal manufacturing based on customer specifications.
