Reliable electrical connections begin with a reliable crimp. In industries such as automotive wiring, consumer electronics, industrial automation, appliances, and telecom equipment, open barrel crimping is one of the most widely used termination methods because it delivers speed, consistency, and long-term performance.

If you are assembling wire harnesses, selecting terminals for a new project, or troubleshooting crimp quality issues, understanding the open barrel crimping process is essential.

This guide explains what open barrel crimping is, how the process works, common defects, inspection standards, tooling choices, and how to select high-quality open barrel terminals for production use.

What Is Open Barrel Crimping?

Open barrel crimping is a wire termination method that uses a terminal with two sets of open wings (or tabs) that are mechanically compressed around a stripped wire and insulation using a crimping tool or machine.

It is often called:

F-crimping

Open wing crimping

Automotive terminal crimping

Stamped terminal crimping

After crimping:

One set of wings grips the conductor strands

Another set supports the wire insulation

This creates a secure electrical and mechanical connection without soldering.

Why It Is Widely Used

Open barrel crimps are preferred because they offer:

Fast assembly speed

Excellent repeatability

Low resistance connection

Strong pull-out retention

Compatibility with automatic crimping machines

Lower production cost in volume manufacturing

Common Applications

Open barrel terminals are widely used in:

Automotive Engineering wire harnesses

Electronics Engineering connectors

Industrial Automation control systems

Telecommunications equipment

Household appliances

Battery systems

Sensors and switches

Anatomy of an Open Barrel Terminal

Understanding terminal structure helps improve crimp quality and supplier selection.

A typical open barrel terminal includes:

1. Conductor Crimp Wings

These smaller wings wrap tightly around stripped copper strands to create electrical contact.

2. Insulation Support Wings

These larger wings hold the wire jacket to reduce vibration stress and strain.

3. Contact Section

The mating area that inserts into the connector housing and connects with the counterpart terminal.

4. Retention Lance

Locks the terminal inside the plastic housing after insertion.

5. Carrier Strip (for Reel Supply)

Used for automatic crimping machines before terminals are separated.

Common Materials for Open Barrel Terminals

Terminal material directly affects conductivity, spring force, corrosion resistance, and forming quality.

Brass

Popular for general applications due to good conductivity and cost balance.

Phosphor Bronze

Better spring performance and fatigue resistance.

Copper Alloys

Used for higher conductivity or custom requirements.

Common Plating Options

Tin plating

Nickel plating

Silver plating

Gold plating (special signal applications)

If you need consistent crimp results, material hardness and plating thickness must remain stable batch after batch.

Open Barrel Crimping Process Explained Step by Step

This is the core production process.

Step 1: Select the Correct Terminal

Choose a terminal designed for:

Correct wire gauge (AWG / mm²)

Required current load

Connector housing compatibility

Environmental conditions

Manual or automatic assembly

Using the wrong terminal size is a leading cause of pull-out failure.

Step 2: Choose the Correct Wire

Check:

Conductor size

Stranding type

Insulation diameter

Material (copper, tinned copper, etc.)

A terminal designed for 22–18 AWG may fail if used on 16 AWG wire.

Step 3: Strip the Wire Properly

Wire stripping must remove insulation cleanly without damaging strands.

Best practice:

No cut strands

No nicked copper

Correct strip length

No twisted-over strands

If strip length is too short, conductor crimp becomes weak. If too long, exposed wire may create shorts.

Step 4: Load the Terminal Into the Tooling

Insert the terminal into:

Hand crimp die

Applicator die

Semi-automatic machine

Fully automatic crimping press

The terminal must align perfectly.

Step 5: Insert the Wire

The stripped conductor should fully enter the conductor barrel while insulation sits under the insulation wings.

Misplacement causes:

Loose crimps

Cut strands

Bent tabs

Poor pull force

Step 6: Execute the Crimp Cycle

The tool compresses both wing sections into designed shapes.

Correct compression creates:

Gas-tight metal contact

Strong mechanical retention

Stable resistance

Step 7: Inspect the Crimp

Each finished crimp should be checked visually and dimensionally.

Step 8: Perform Pull Force Testing

A tensile pull test confirms retention strength.

For production lines, periodic destructive testing is standard quality practice.

What Makes a Good Open Barrel Crimp?

A high-quality crimp is more than “wire attached to terminal.”

It should have:

Proper conductor compression

No broken strands

Symmetrical wing fold

Correct bellmouth formation

Stable crimp height

Insulation support without crushing jacket

Strong pull-out force

Low electrical resistance

Open Barrel Crimp Quality Standards You Should Know

Manufacturers often use internal standards plus industry guidelines from IPC and WHMA.

Key Inspection Items

Inspection Item	Acceptable Result
Crimp Height	Within specification
Crimp Width	Consistent
Wire Brush	Slight conductor extension visible
Bellmouth	Present and smooth
Strand Damage	None
Pull Force	Meets requirement
Insulation Grip	Secure, not crushed
Terminal Shape	No deformation

Crimp Height Control

Crimp height is one of the most critical measurements. It directly affects compression force.

Too high = under crimp

Too low = over crimp

Use calibrated micrometers and SPC monitoring in mass production.

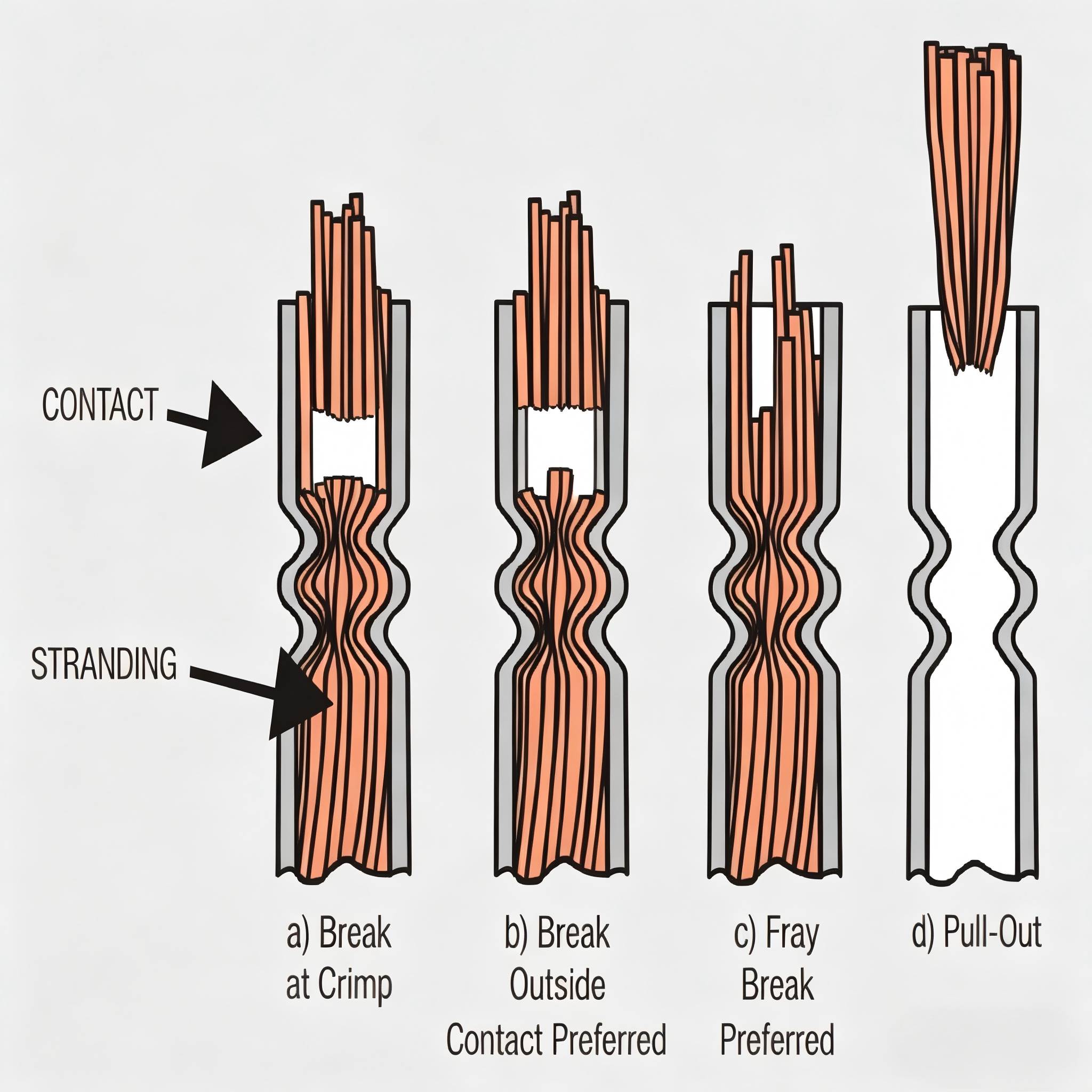

Pull Force Testing

Minimum pull force depends on wire size, material, and customer standard.

Example concept:

Smaller wires = lower force threshold

Larger wires = higher threshold

Always validate using actual application requirements.

Common Open Barrel Crimping Defects and How to Fix Them

Production problems often come from tooling, setup, material variation, or operator error.

Problem	Likely Cause	Solution
Loose wire	Under crimp	Reduce crimp height
Cut strands	Over crimp	Increase crimp height
Bent terminal	Misalignment	Reset tooling
Terminal pullout	Wrong wire size	Match wire and terminal
Insulation damage	Excess pressure	Adjust insulation crimp
High resistance	Poor conductor compression	Recalibrate tool
Housing insertion issue	Lance deformation	Improve feeding alignment

Defect Prevention Tips

Use certified tooling

Check first article samples

Measure crimp height regularly

Replace worn dies

Use stable terminal material

Train operators

Open Barrel Crimping Tools and Machines

Tool choice affects speed, consistency, and cost.

Hand Crimp Tools

Best for:

Repairs

Prototypes

Low-volume production

Advantages:

Low investment

Portable

Limitations:

Operator dependent

Lower consistency

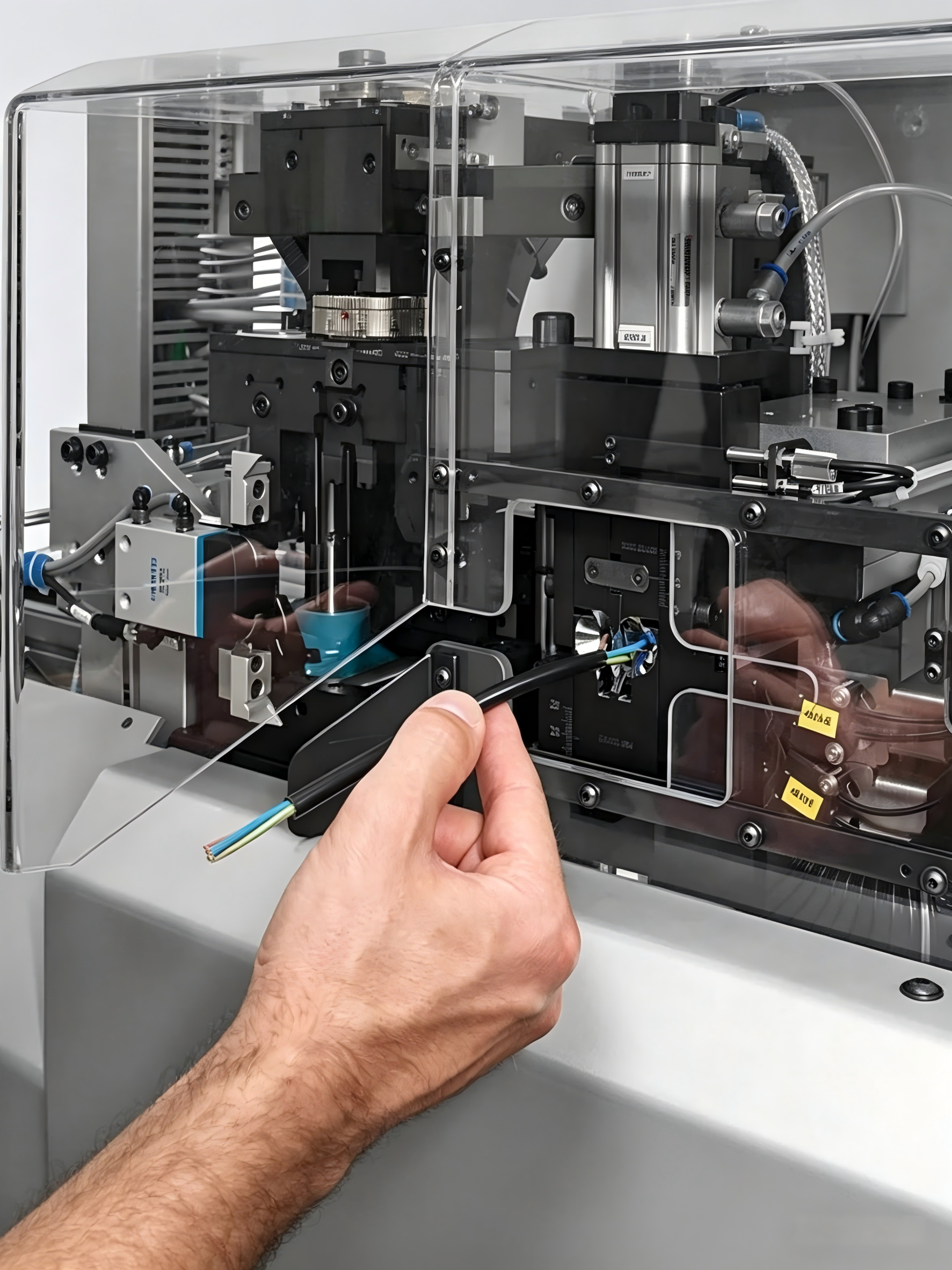

Semi-Automatic Crimping Machines

Best for:

Medium-volume production

Better consistency

Advantages:

Faster output

More repeatable results

Fully Automatic Wire Processing Machines

Best for:

High-volume wire harness production

Functions may include:

Wire cutting

Stripping

Crimping

Double-end crimping

Inspection systems

If you run mass production, machine-compatible reel-fed terminals are essential.

Open Barrel vs Closed Barrel Crimping

Many buyers compare these two terminal styles.

Feature	Open Barrel	Closed Barrel
Assembly Speed	Fast	Medium
Automation Suitability	Excellent	Limited
Automotive Use	Very High	Moderate
Repair Work	Moderate	Good
Cost Efficiency	High in volume	Medium
Pull Strength	Excellent when correct	Good

For automated wire harness production, open barrel terminals are usually preferred.

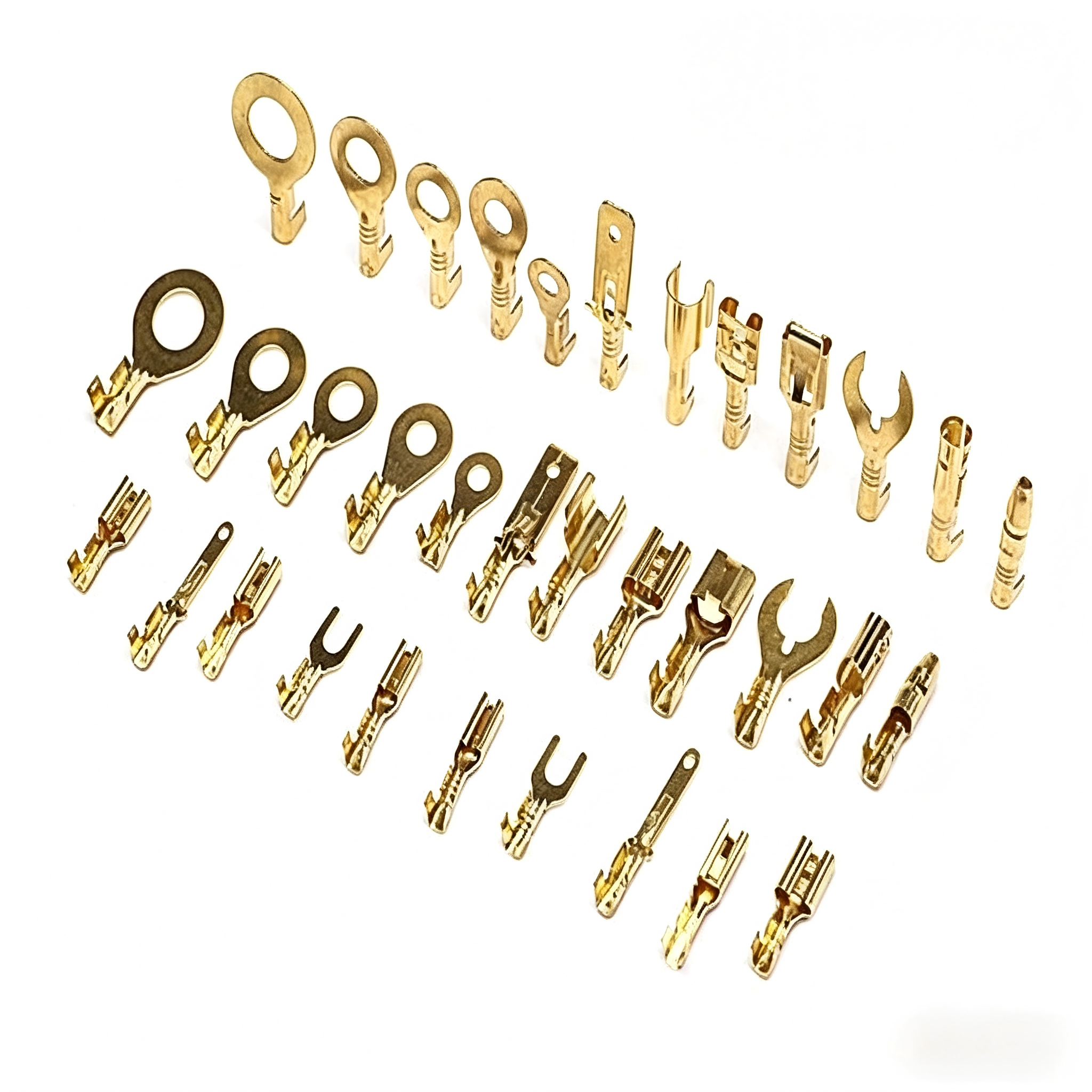

How to Choose High-Quality Open Barrel Terminals

Not all terminals crimp the same. Poor stamping precision or unstable raw material creates serious quality issues.

What Buyers Should Evaluate

1. Dimensional Consistency

Terminal width, wing shape, lance geometry, and strip pitch must remain accurate.

2. Material Stability

Hardness variation causes inconsistent crimp compression.

3. Burr Control

Excess burrs can cut wire strands or block housing insertion.

4. Plating Quality

Uniform plating improves corrosion resistance and solderability where required.

5. Reel Packaging Accuracy

Important for automatic feeding machines.

6. Production Traceability

A professional supplier should provide batch control and inspection records.

Why Manufacturers Source Open Barrel Terminals from Professional Factories

If your product reliability depends on electrical connections, terminal quality should never be treated as a commodity purchase.

A capable terminal manufacturer can provide:

Precision progressive stamping

Custom tooling development

Tight tolerance production

Tin / nickel / selective plating options

Reel or loose packaging

OEM connector-compatible designs

Stable lead times

Technical crimp support

For many harness manufacturers, changing to a better terminal supplier immediately reduces rejects and downtime.

Custom Open Barrel Terminal Solutions

Many OEM customers need non-standard terminals for unique applications.

Custom options may include:

Special material thickness

High-current geometry

Miniature connector terminals

Double-wire crimp design

Seal-compatible terminals

High-temperature plating

Custom carrier strip pitch

If you have drawings or samples, custom development is often possible.

Need High-Quality Open Barrel Terminals for Your Project?

If you need:

Standard or custom open barrel terminals

Stable crimping performance

Reel-fed terminals for automatic machines

Fast samples and competitive pricing

Contact us with your drawings or specifications for a quotation.

FAQs

1.What is an open barrel crimp terminal?

It is a stamped metal terminal with open wings that are compressed around conductor strands and insulation.

2.Is open barrel crimping better than soldering?

For mass production and vibration resistance, crimping is often preferred because it is faster and more consistent.

3.What causes weak pull force?

Common causes include under crimping, wrong wire size, damaged strands, or poor terminal design.

4.Can open barrel terminals be used in automotive wiring?

Yes. They are widely used in automotive harness systems worldwide.

5.How do I check crimp quality?

Use visual inspection, crimp height measurement, pull testing, and cross-section analysis when required.

6.Can you manufacture custom open barrel terminals?

Yes. Many terminal factories support custom stamping based on drawings or samples.
