How Electrical Terminals Are Manufactured

Introduction

Electrical terminals are essential components in modern electrical and electronic systems. From automotive wiring harnesses and industrial machinery to renewable energy systems and consumer electronics, terminals provide the electrical connection points that enable stable power and signal transmission.

Although electrical terminals may appear simple, manufacturing high-quality terminals requires advanced engineering, precision tooling, automated production systems, and strict quality control.

The manufacturing process directly affects:

• Electrical conductivity
• Crimp reliability
• Corrosion resistance
• Mechanical strength
• Product lifespan
• Safety performance

As industries move toward higher power density, miniaturization, and automation, terminal manufacturing has become increasingly sophisticated.

This article explains the complete electrical terminal manufacturing process, including:

• Raw material selection
• Precision metal stamping
• Surface plating
• Insulation molding
• Quality inspection
• Reliability testing

What Are Electrical Terminals?

Electrical terminals are conductive connectors used to join wires, cables, or electrical devices together.

They help ensure:

• Stable electrical transmission
• Secure mechanical connection
• Safe operation of electrical systems

Electrical terminals are widely used in:

• Automotive wiring harnesses
• Power distribution systems
• Industrial equipment
• Consumer electronics
• Renewable energy systems

Common Types of Electrical Terminals

Several terminal types are commonly used in electrical systems.

Ring Terminals

Provide secure screw-mounted electrical connections.

Spade Terminals

Allow quick installation and removal.

Pin Terminals

Used for compact terminal blocks and connectors.

Butt Connectors

Join two wires together end-to-end.

Cable Lugs

Used for high-current power connections.

Different terminal structures require different manufacturing methods and tooling designs.

Overview of the Electrical Terminal Manufacturing Process

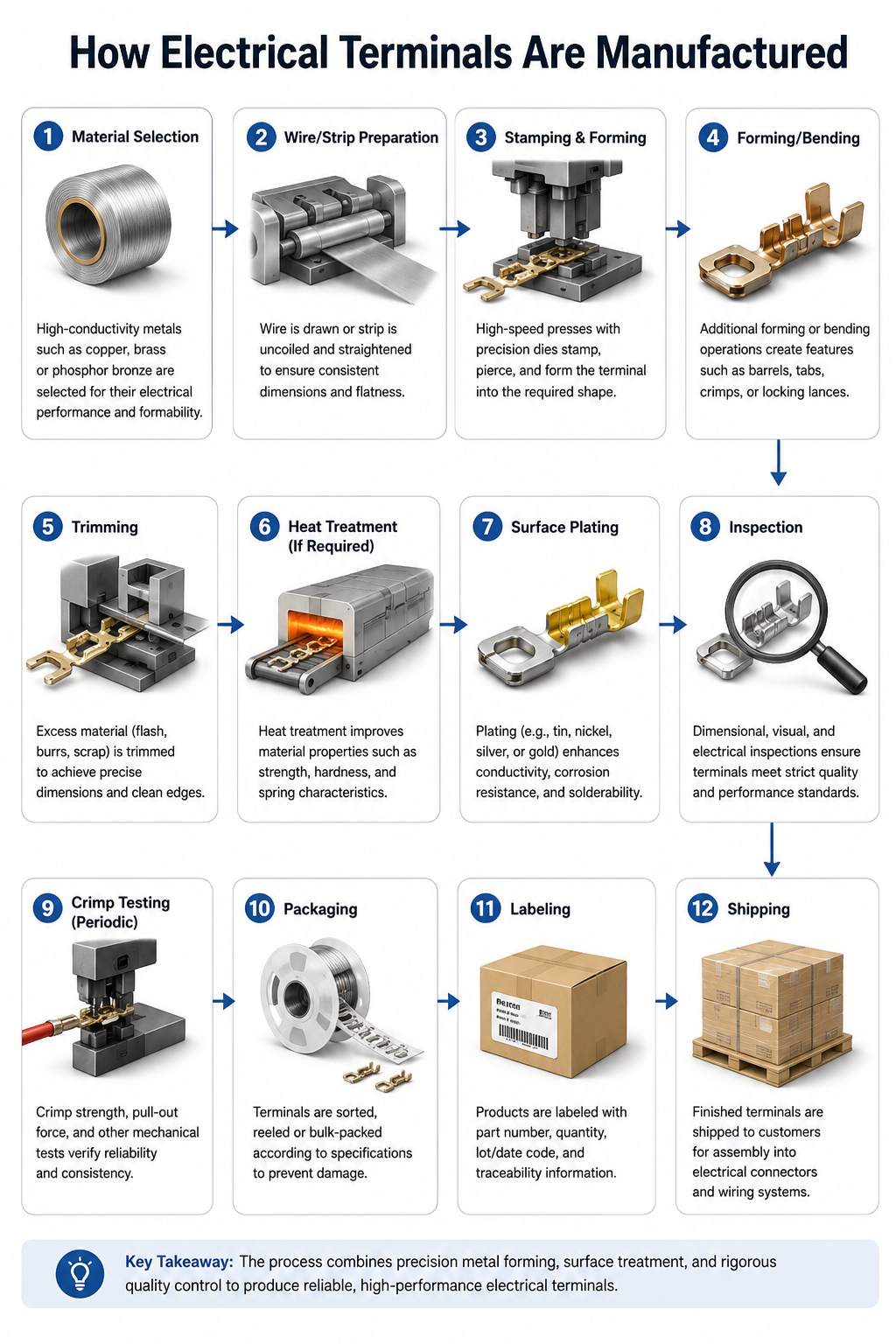

The manufacturing process generally includes the following stages:

1. Raw Material Selection
2. Metal Stamping
3. Forming & Bending
4. Deburring
5. Heat Treatment (if required)
6. Surface Plating
7. Insulation & Injection Molding
8. Quality Inspection & Testing
9. Packaging & Delivery

Each process directly affects terminal quality and long-term reliability.

Step 1: Raw Material Selection

Material selection is one of the most important stages in terminal manufacturing.

The material determines:

• Electrical conductivity
• Mechanical strength
• Corrosion resistance
• Crimp performance
• Manufacturing cost

Common Materials Used for Electrical Terminals

Copper

Copper is the most widely used terminal material because it offers:

• Excellent electrical conductivity
• Low resistance
• Good thermal performance

Copper terminals are commonly used in:

• Automotive wiring
• Power distribution
• Industrial systems

Brass

Brass provides:

• Higher mechanical strength
• Better wear resistance
• Good machinability

Brass terminals are often used in applications requiring stronger structural durability.

Phosphor Bronze

Phosphor bronze offers:

• Excellent elasticity
• Fatigue resistance
• Stable spring performance

It is commonly used in connector terminals and spring-contact applications.

Material Thickness Selection

Terminal thickness is selected according to:

• Current carrying requirements
• Mechanical strength needs
• Crimp structure design

Higher current applications typically require thicker materials to reduce heat buildup and resistance.

Step 2: Metal Stamping Process

Metal stamping is the core manufacturing process for most electrical terminals.

High-speed stamping machines combined with precision progressive dies allow manufacturers to produce terminals efficiently and consistently.

What Is Terminal Stamping?

Terminal stamping is a manufacturing process where metal strips are continuously fed through precision molds that:

• Punch
• Cut
• Shape
• Form

the terminal structure.

Modern stamping systems can produce thousands of terminals per minute.

Progressive Stamping Dies

Most electrical terminals are manufactured using progressive stamping dies.

A progressive die performs multiple operations continuously in one production cycle.

How Progressive Dies Work

The process generally includes:

• Material feeding
• Hole punching
• Outline cutting
• Barrel forming
• Bending
• Final separation

Each station performs one specific operation until the finished terminal is produced.

Advantages of Precision Stamping

Precision stamping offers several advantages:

• High production speed
• Excellent consistency
• Low manufacturing cost
• High dimensional accuracy
• Suitable for mass production

This process is essential for automotive and industrial terminal manufacturing.

Step 3: Forming and Bending

After stamping, the terminal enters the forming stage.

This process shapes the terminal into its final structure.

Crimp Barrel Forming

The crimp barrel must be precisely formed to ensure:

• Proper wire compression
• Stable conductivity
• Strong pull-out force

Poor barrel forming can lead to unreliable electrical connections.

Precision Angle Bending

Some terminals require complex bending angles for installation compatibility.

Precision bending ensures:

• Proper fit
• Assembly consistency
• Stable mechanical performance

Maintaining Dimensional Accuracy

Modern terminal manufacturing requires extremely tight tolerances.

Even small dimensional variations may affect:

• Crimp quality
• Connector fit
• Electrical reliability

Step 4: Deburring Process

Stamping may generate small sharp metal edges called burrs.

Burrs are dangerous because they can:

• Damage wire insulation
• Create poor crimps
• Cause installation difficulties
• Increase short-circuit risk

Therefore, deburring is a critical manufacturing step.

Deburring Methods

Mechanical Deburring

Mechanical polishing removes sharp edges from the terminal surface.

Vibratory Finishing

Vibratory systems smooth terminal surfaces using abrasive media.

Precision Edge Treatment

High-end terminals may undergo additional edge finishing to improve safety and reliability.

Step 5: Heat Treatment

Some terminals require heat treatment to improve mechanical properties.

Heat treatment may:

• Increase hardness
• Improve spring performance
• Enhance fatigue resistance

This process is especially important for:

• Spring terminals
• Connector contacts
• High-vibration applications

Step 6: Surface Plating Process

Surface plating is essential for improving terminal performance.

Without proper plating, terminals may oxidize and lose conductivity over time.

Why Electrical Terminals Need Plating

Plating improves:

• Corrosion resistance
• Conductivity stability
• Solderability
• Appearance
• Long-term durability

Common Terminal Plating Types

Tin Plating

Tin plating is the most widely used terminal plating solution.

Advantages:

• Excellent corrosion resistance
• Stable conductivity
• Cost efficiency
• Good solderability

Tin-plated terminals are commonly used in:

• Automotive wiring harnesses
• Industrial systems
• Consumer electronics

Nickel Plating

Nickel plating provides:

• High-temperature resistance
• Better wear resistance
• Chemical protection

Silver Plating

Silver plating offers:

• Extremely low resistance
• Excellent conductivity

It is commonly used in high-performance electrical systems.

Gold Plating

Gold plating is mainly used in:

• Precision electronics
• Signal transmission systems

because of its superior oxidation resistance.

Tin Plating Process for Electrical Terminals

Tin plating is usually performed using electroplating technology.

The process includes:

• Surface cleaning
• Chemical preparation
• Electroplating
• Rinsing
• Drying

Plating Thickness Control

Plating thickness directly affects:

• Corrosion resistance
• Conductivity stability
• Product lifespan

Strict thickness control is essential for stable quality.

Why Tin-Plated Terminals Are Widely Used

Tin plating provides a balance between:

• Performance
• Cost
• Durability

This makes it ideal for large-scale industrial applications.

Step 7: Insulation & Injection Molding

Many terminals require insulation for electrical protection.

PVC Insulated Terminals

PVC insulation offers:

• Low cost
• Easy identification
• Basic electrical protection

Nylon Insulated Terminals

Nylon insulation provides:

• Better heat resistance
• Stronger mechanical durability
• Improved flexibility

Heat Shrink Terminals

Heat shrink terminals provide:

• Waterproof sealing
• Corrosion protection
• Better strain relief

They are widely used in outdoor systems.

Insert Molding Technology

Some terminals use insert molding technology where metal terminals are combined with molded plastic structures.

This process improves:

• Assembly integration
• Waterproof performance
• Structural stability

Step 8: Quality Inspection & Testing

Quality inspection is critical in terminal manufacturing.

Even small defects can cause electrical failures.

Dimensional Inspection

Manufacturers verify:

• Hole size
• Barrel dimensions
• Thickness
• Bending angle

using precision measurement equipment.

Pull-Out Force Testing

This test evaluates crimp strength and wire retention reliability.

Plating Thickness Inspection

Specialized instruments measure plating consistency.

Salt Spray Testing

Salt spray testing evaluates corrosion resistance under harsh environmental conditions.

Electrical Conductivity Testing

Manufacturers verify:

• Resistance levels
• Current carrying capability
• Heat generation performance

Crimp Reliability Testing

Crimp testing ensures:

• Stable compression
• Proper conductor deformation
• Long-term reliability

Automated Vision Inspection

Modern factories increasingly use AI vision systems to detect:

• Burrs
• Cracks
• Deformation
• Surface defects

Step 9: Packaging & Final Delivery

Packaging protects terminals during transportation and storage.

Reel Packaging

Automated assembly applications often require reel packaging.

Bulk Packaging

Bulk packaging is commonly used for industrial terminal supply.

Moisture Protection

Anti-moisture packaging helps protect plated terminals from oxidation during shipping.

How Automation Improves Terminal Manufacturing

Automation greatly improves:

• Production speed
• Consistency
• Quality control
• Manufacturing efficiency

Modern factories use:

• High-speed stamping machines
• Automated plating lines
• Robotic inspection systems
• Automated packaging equipment

Challenges in Electrical Terminal Manufacturing

Terminal manufacturing requires solving many technical challenges.

Tight Tolerance Control

Small dimensional errors can affect performance.

Burr Control

Sharp edges must be minimized.

Plating Consistency

Uneven plating can reduce durability.

High-Speed Production Stability

Maintaining consistency at high speed is difficult.

Why Precision Tooling Matters

Precision tooling is the foundation of stable terminal manufacturing.

High-quality molds improve:

• Accuracy
• Production consistency
• Tool lifespan
• Surface quality

Progressive die design is especially important for complex terminals.

Common Manufacturing Defects in Electrical Terminals

Manufacturers must control defects such as:

• Burrs
• Cracks
• Uneven plating
• Deformation
• Weak crimp structures

Strict quality systems help minimize these risks.

Industries That Use Precision Electrical Terminals

High-quality terminals are widely used in:

• Automotive wiring harnesses
• Renewable energy systems
• Industrial automation
• Consumer electronics
• Power distribution equipment

Each industry has different performance and reliability requirements.

Why Choose Qianwei Precision

Qianwei Precision specializes in precision electrical terminal manufacturing.

Our Advantages

• 1800+ production molds
• Advanced precision stamping technology
• Stable tin plating processes
• Strict quality control systems
• OEM & ODM support
• Fast prototype development

Product Range

We manufacture:

• Ring terminals
• Cable lugs
• Spade terminals
• Butt connectors
• Pin terminals

Our products are widely used in:

• Automotive systems
• Industrial equipment
• Renewable energy systems
• Consumer electronics

Conclusion

Electrical terminal manufacturing is a highly specialized process that combines:

• Precision stamping
• Advanced plating technology
• Strict quality control
• Automated production systems

Every manufacturing stage directly affects:

• Conductivity
• Reliability
• Corrosion resistance
• Product lifespan

As electrical systems become more advanced, high-quality manufacturing processes are increasingly important for ensuring stable and safe electrical connections.

Reliable electrical systems start with precision-manufactured terminals.

Looking for Reliable Terminal Manufacturing Solutions?

Qianwei Precision provides professional terminal manufacturing services for automotive, industrial, and power distribution applications.

• Request free samples
• Get engineering support
• Customize your terminal solution

Contact Qianwei Precision today for high-quality electrical terminal solutions.

FAQs

What materials are commonly used to manufacture electrical terminals?

Electrical terminals are commonly manufactured using:

• Copper
• Brass
• Phosphor bronze

Copper is the most widely used material because of its excellent electrical conductivity and low resistance.

How are electrical terminals manufactured?

The typical manufacturing process includes:

1. Raw material selection
2. Precision metal stamping
3. Forming and bending
4. Deburring
5. Surface plating
6. Insulation molding
7. Quality inspection and testing

Modern terminals are usually produced using high-speed automated stamping systems.

What is progressive stamping in terminal manufacturing?

Progressive stamping is a high-speed manufacturing process where metal strips move through multiple die stations.

Each station performs a different operation such as:

• Punching
• Cutting
• Forming
• Bending

This method allows efficient mass production with high precision and consistency.

Why is tin plating important for electrical terminals?

Tin plating improves:

• Corrosion resistance
• Conductivity stability
• Solderability
• Long-term durability

Tin-plated terminals are widely used in automotive, industrial, and outdoor electrical applications.

How are burrs removed from electrical terminals?

Manufacturers use several deburring methods including:

• Mechanical polishing
• Vibratory finishing
• Precision edge treatment

Removing burrs is important because sharp edges may damage wires or affect crimp quality.

Why is quality inspection important in terminal manufacturing?

Quality inspection helps ensure:

• Stable electrical performance
• Accurate dimensions
• Reliable crimping
• Corrosion resistance
• Long-term durability

Even small defects can lead to electrical failure or overheating.

What testing methods are used for electrical terminals?

Common testing methods include:

• Pull-out force testing
• Salt spray testing
• Plating thickness inspection
• Electrical conductivity testing
• Temperature rise testing
• Crimp reliability testing

These tests help verify terminal safety and reliability.

Can electrical terminals be customized?

Yes. Manufacturers can customize terminals according to:

• Wire size
• Current requirements
• Installation space
• Environmental conditions
• Special structures

Custom terminals are widely used in automotive, renewable energy, and industrial systems.

What industries use precision electrical terminals?

Precision terminals are widely used in:

• Automotive wiring harnesses
• Industrial automation
• Renewable energy systems
• Consumer electronics
• Power distribution equipment
• Agricultural machinery

Different industries require different terminal structures and performance characteristics.

How does automation improve terminal manufacturing?

Automation improves:

• Production speed
• Dimensional consistency
• Quality control
• Manufacturing efficiency

Modern factories use:

• High-speed stamping machines
• Automated plating lines
• Robotic inspection systems
• Automated packaging equipment

What causes electrical terminal failure during manufacturing?

Common manufacturing-related failures include:

• Burr defects
• Poor plating quality
• Incorrect crimp structures
• Material cracking
• Dimensional inaccuracies

Strict process control is essential to minimize these issues.

How long does electrical terminal production take?

Production time depends on:

• Product complexity
• Tooling requirements
• Order quantity
• Surface treatment processes

Standard terminals can often be produced quickly, while custom terminals may require additional tooling and testing time.
