Electrical terminals play a critical role in modern electrical systems. Whether used in automotive wiring harnesses, industrial machinery, renewable energy systems, or consumer electronics, terminals must provide stable conductivity, reliable mechanical retention, and long-term durability.

However, even high-quality terminals can fail if they are not properly matched with the correct insulation type.

Many electrical failures are caused by:

• Incorrect insulation selection
• Poor crimp compatibility
• Inadequate temperature resistance
• Moisture intrusion
• Improper environmental protection

As electrical systems become more compact, powerful, and demanding, matching terminals with suitable insulation materials has become increasingly important.

The right insulation combination improves:

• Electrical safety
• Waterproof performance
• Corrosion resistance
• Mechanical durability
• Long-term reliability

This guide explains how to correctly match terminals with insulation types for different industries and operating environments.

What Are Insulated Electrical Terminals?

Insulated terminals are electrical connectors that include a protective insulating sleeve around the crimp barrel or connection area.

The insulation layer helps:

• Prevent accidental short circuits
• Improve electrical safety
• Protect against environmental exposure
• Strengthen mechanical durability

Insulated terminals are widely used in:

• Automotive wiring
• Industrial equipment
• Consumer electronics
• Power distribution systems

Depending on the application, insulation materials may vary in:

• Temperature resistance
• Waterproof capability
• Mechanical strength
• Chemical resistance

Main Functions of Terminal Insulation

Electrical Protection

The primary purpose of insulation is preventing unintended electrical contact.

Proper insulation reduces the risk of:

• Short circuits
• Electric shock
• Arc generation

Mechanical Protection

Insulation also helps protect the wire connection from:

• Abrasion
• Mechanical vibration
• Wire bending stress

Environmental Protection

Certain insulation materials improve resistance to:

• Moisture
• Dust
• Corrosion
• UV exposure

Wire Strain Relief

Insulated terminals help reduce stress concentration near the crimp area, improving long-term wire reliability.

Common Types of Terminal Insulation

Different insulation materials are designed for different operating conditions.

Choosing the correct insulation type is essential for reliable performance.

PVC Insulated Terminals

PVC (Polyvinyl Chloride) insulated terminals are among the most widely used terminal types.

Features

• Low manufacturing cost
• Easy color identification
• Good flexibility
• Widely available

Advantages

• Economical solution
• Suitable for general electrical applications
• Easy installation

Limitations

PVC has relatively limited:

• Heat resistance
• Chemical resistance
• UV durability

Typical temperature rating:

• Approximately 75°C to 105°C

Typical Applications

• Consumer electronics
• Household appliances
• Low-cost electrical assemblies

Nylon Insulated Terminals

Nylon insulation provides better performance than standard PVC insulation.

Features

• Higher mechanical strength
• Better abrasion resistance
• Improved temperature resistance
• Better flexibility

Advantages

• More durable in industrial environments
• Better vibration resistance
• Longer service life

Best Applications

Nylon insulated terminals are commonly used in:

• Automotive systems
• Industrial control equipment
• Machinery wiring harnesses

Temperature Performance

Nylon generally performs better under elevated temperatures compared with PVC.

Heat Shrink Insulated Terminals

Heat shrink terminals provide the highest level of environmental protection among common insulated terminals.

Features

• Heat-activated sealing
• Waterproof protection
• Adhesive-lined insulation
• Excellent environmental resistance

Advantages

• Superior moisture protection
• Strong corrosion resistance
• Better strain relief
• Improved vibration durability

Best Outdoor Applications

Heat shrink terminals are widely used in:

• Marine systems
• Solar power systems
• Outdoor electrical installations
• Heavy-duty automotive wiring

Why They Are Popular

Once heated, the insulation tightly seals around the wire, creating a waterproof barrier against moisture and contaminants.

Non-Insulated Terminals

Non-insulated terminals do not include a built-in insulation sleeve.

Features

• Compact design
• Better flexibility for custom insulation solutions
• Suitable for automated assembly

Advantages

• Better conductivity in some applications
• Easier visual inspection of crimp quality
• Suitable for high-temperature environments

Industrial Applications

Non-insulated terminals are commonly used in:

• Industrial equipment
• Power distribution systems
• Automotive OEM harnesses

Additional insulation such as heat shrink tubing is often applied separately.

Why Matching Terminals with Insulation Types Matters

Selecting the wrong insulation type can create serious reliability problems.

Electrical Safety

Improper insulation may lead to:

• Short circuits
• Electrical leakage
• Arc faults

Correct insulation improves operational safety.

Proper Crimping Performance

Different insulation materials have different thickness and flexibility characteristics.

Incorrect matching may cause:

• Weak crimps
• Insufficient compression
• Damaged insulation

Proper compatibility ensures stable mechanical retention.

Environmental Protection

Outdoor or humid environments require insulation capable of resisting:

• Water
• Dust
• Corrosion

PVC terminals may not provide sufficient protection for harsh outdoor applications.

Temperature Resistance

Operating temperature directly affects insulation durability.

Low-temperature materials used in high-heat environments may:

• Soften
• Crack
• Melt
• Degrade prematurely

Long-Term Reliability

The correct insulation combination improves:

• Connection stability
• Mechanical durability
• System lifespan

How to Match Terminals with Wire Insulation Types

Several factors must be considered when matching terminals with insulation types.

Match According to Wire Diameter

The terminal barrel must match the wire conductor size.

AWG Compatibility

Terminals are typically designed for specific AWG ranges.

Using oversized or undersized terminals may result in:

• Loose crimps
• Poor conductivity
• Mechanical instability

Crimp Barrel Sizing

The crimp barrel must properly compress both:

• The conductor
• The insulation support area

Correct barrel sizing improves pull-out strength and conductivity stability.

Match According to Insulation Thickness

Different wires may have different insulation wall thicknesses even if conductor size is identical.

Thicker insulation may not fit properly into standard terminal sleeves.

Important considerations include:

• Insulation OD (Outer Diameter)
• Compression force
• Crimp tooling compatibility

Match According to Operating Temperature

Standard Temperature Applications

For normal indoor environments:

• PVC insulated terminals are usually sufficient

High-Temperature Applications

Automotive engine compartments and industrial equipment often require:

• Nylon insulation
• High-temperature heat shrink materials

These materials maintain stability under elevated temperatures.

Match According to Environmental Conditions

Indoor Applications

Standard PVC insulation may be acceptable in:

• Dry indoor environments
• Consumer electronics

Outdoor Applications

Outdoor systems require stronger environmental protection.

Recommended solutions include:

• Heat shrink terminals
• Waterproof connectors
• Tin-plated terminals

Moisture & Corrosion Exposure

Humid environments demand corrosion-resistant combinations such as:

• Tin-plated copper terminals
• Heat shrink insulation

Match According to Voltage Requirements

Low Voltage Systems

Consumer electronics and control systems often use compact insulated terminals.

Industrial Power Systems

Higher voltage systems require:

• Better insulation performance
• Greater creepage distance
• Improved heat resistance

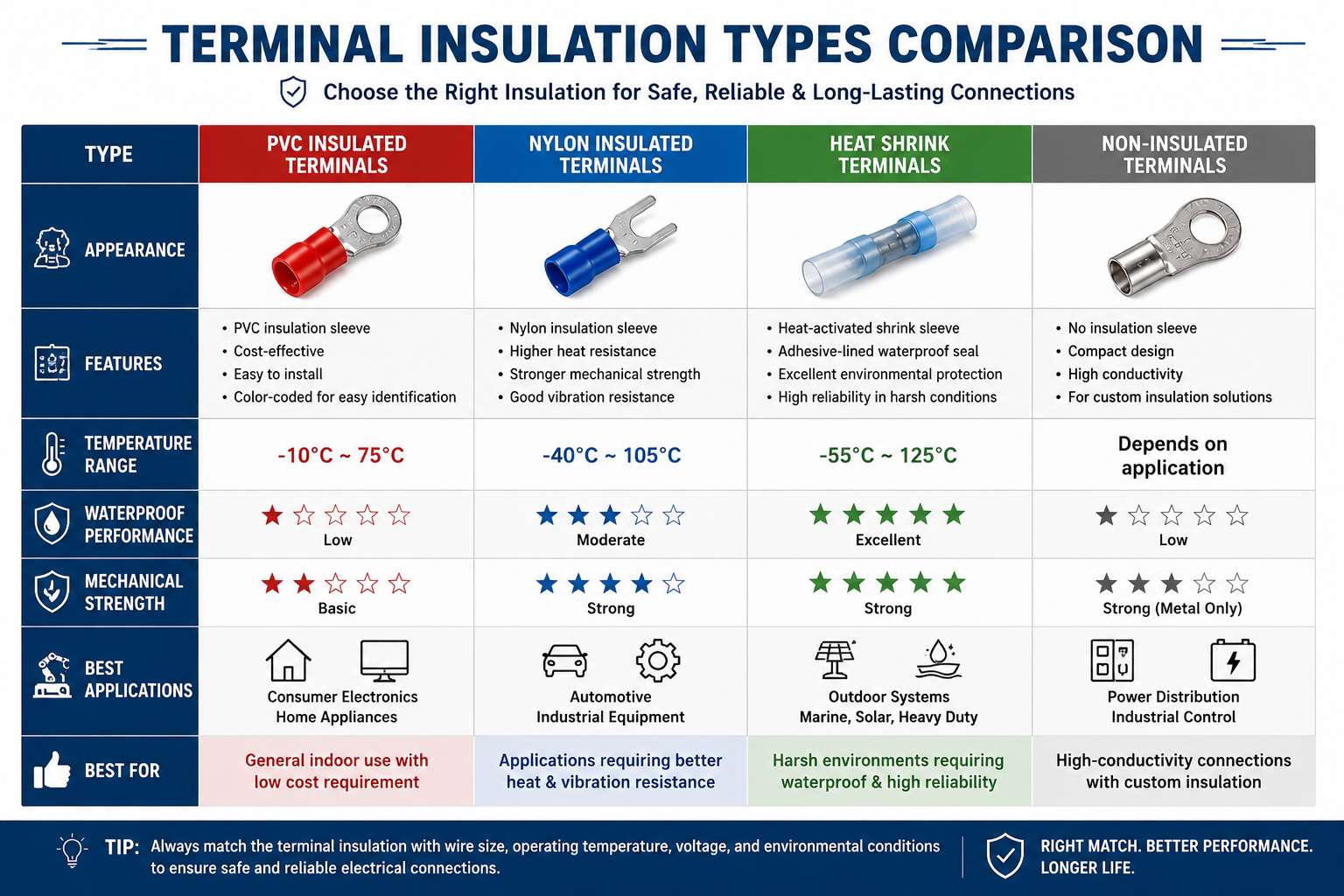

PVC vs Nylon vs Heat Shrink Terminals

Feature	PVC	Nylon	Heat Shrink
Cost	Low	Medium	Higher
Temperature Resistance	Moderate	Better	Excellent
Waterproof Performance	Low	Moderate	Excellent
Mechanical Strength	Basic	Strong	Strong
Outdoor Use	Limited	Good	Best

Each insulation type serves different application requirements.

Choosing the Right Insulation for Different Industries

Automotive Wiring Harnesses

Automotive systems require:

• Heat resistance
• Vibration resistance
• Long-term durability

Recommended:

• Nylon insulated terminals
• Heat shrink terminals

Renewable Energy Systems

Solar and energy storage systems operate outdoors continuously.

Recommended:

• Heat shrink terminals
• Tin-plated copper terminals

Industrial Automation

Industrial machinery often experiences:

• Oil contamination
• Vibration
• Elevated temperatures

Recommended:

• Nylon insulated terminals

Consumer Electronics

Consumer devices prioritize:

• Cost efficiency
• Compact size
• Easy assembly

Recommended:

• PVC insulated terminals

Marine Applications

Marine systems face:

• Saltwater exposure
• High humidity
• Severe corrosion risk

Recommended:

• Heat shrink terminals
• Tin-plated copper terminals
• Waterproof connectors

Heat Shrink Terminals for Outdoor Applications

Heat shrink terminals are among the most reliable solutions for harsh environments.

Waterproof Advantages

The heat shrink layer seals tightly around the wire and terminal.

This helps block:

• Water
• Moisture
• Dirt
• Salt contamination

Corrosion Resistance

By preventing moisture intrusion, heat shrink terminals greatly reduce corrosion risk.

Vibration Protection

The additional insulation layer improves mechanical stability under vibration.

Long-Term Outdoor Reliability

Heat shrink terminals are commonly used in:

• Marine equipment
• Solar installations
• Agricultural machinery
• Heavy-duty vehicles

Common Mistakes When Matching Terminals & Insulation

Choosing the Wrong Wire Size

Incorrect wire size matching weakens the crimp connection.

Ignoring Temperature Ratings

Using low-temperature insulation in high-heat environments leads to premature failure.

Using PVC in Harsh Outdoor Environments

PVC may degrade under:

• UV exposure
• Moisture
• High temperature

Poor Crimping Tool Selection

Incorrect tooling may damage insulation or create unstable crimps.

Ignoring Waterproof Requirements

Outdoor applications require proper sealing solutions.

How Crimping Quality Affects Insulated Terminals

Even high-quality insulated terminals can fail if crimping quality is poor.

Under-Crimping Problems

Insufficient compression may cause:

• Loose connections
• High resistance
• Overheating

Over-Crimping Problems

Excessive compression may:

• Damage insulation
• Break conductor strands
• Reduce terminal lifespan

Importance of Professional Crimping Tools

Professional tooling ensures:

• Correct compression force
• Stable conductivity
• Reliable pull-out strength

Best Materials for Insulated Terminals

Copper

Provides excellent conductivity and low resistance.

Tin-Plated Copper

Offers:

• Corrosion resistance
• Stable conductivity
• Better outdoor durability

Brass

Provides higher mechanical strength but slightly lower conductivity than copper.

Why Tin-Plated Terminals Work Better with Insulated Connectors

Tin plating improves:

• Corrosion protection
• Moisture resistance
• Long-term conductivity stability

This is especially important in outdoor and humid environments.

Testing Standards for Insulated Terminals

Reliable insulated terminals should undergo strict testing.

Common tests include:

• Pull-out force testing
• Insulation resistance testing
• Temperature rise testing
• Waterproof testing
• Salt spray testing

These tests help verify long-term reliability.

Why Choose Qianwei Precision

Qianwei Precision specializes in high-quality electrical terminals for industrial and automotive applications.

Our Advantages

• Precision stamping technology
• Stable tin plating processes
• Strict quality control systems
• 1800+ production molds
• OEM & customization support

Product Range

We manufacture:

• Ring terminals
• Cable lugs
• Spade terminals
• Butt connectors
• Pin terminals

Our products are widely used in:

• Automotive systems
• Renewable energy systems
• Industrial equipment
• Consumer electronics

Conclusion

Matching terminals with the correct insulation type is essential for ensuring:

• Electrical safety
• Waterproof performance
• Heat resistance
• Long-term durability

Different applications require different insulation solutions.

By selecting suitable:

• Materials
• Insulation types
• Crimping methods
• Surface plating

manufacturers can significantly improve electrical connection reliability and reduce system failure risks.

Reliable electrical systems begin with properly matched terminal solutions.

Looking for Reliable Insulated Terminal Solutions?

Qianwei Precision provides customized terminal solutions engineered for automotive, industrial, and outdoor applications.

• Request free samples
• Get engineering support
• Customize your terminal solution

Contact Qianwei Precision today for professional electrical connection solutions.

FAQs

What is the difference between PVC and nylon insulated terminals?

PVC insulated terminals are more economical and commonly used in general electrical applications, while nylon insulated terminals provide:

• Better heat resistance
• Higher mechanical strength
• Improved flexibility
• Better vibration durability

Nylon terminals are typically preferred for automotive and industrial environments.

Are heat shrink terminals waterproof?

Yes. Heat shrink terminals are designed to provide waterproof sealing after heating.

The adhesive-lined insulation helps block:

• Water
• Moisture
• Dust
• Corrosion contaminants

They are widely used in marine, automotive, and outdoor electrical systems.

Which insulated terminal is best for outdoor use?

Heat shrink insulated terminals are generally considered the best option for outdoor environments because they provide:

• Excellent waterproof protection
• Strong corrosion resistance
• Better vibration durability
• Long-term environmental protection

Tin-plated copper heat shrink terminals are especially popular for harsh environments.

How do I choose the correct insulated terminal size?

You should match the terminal according to:

• Wire gauge (AWG)
• Conductor size
• Insulation outer diameter
• Current rating

Using the wrong size may lead to poor crimping, overheating, or unstable electrical connections.

What happens if terminal insulation is mismatched?

Incorrect insulation matching may cause:

• Weak crimping
• Insulation damage
• Reduced waterproof performance
• Overheating
• Electrical failure

Proper compatibility is essential for long-term reliability.

Are nylon terminals better for automotive applications?

Yes. Nylon insulated terminals are widely used in automotive systems because they offer:

• Better heat resistance
• Stronger mechanical durability
• Improved vibration resistance

They perform better than standard PVC terminals in demanding automotive environments.

Why are heat shrink terminals used in marine systems?

Marine environments involve:

• Saltwater exposure
• High humidity
• Corrosion risk

Heat shrink terminals provide sealed waterproof protection that helps prevent moisture intrusion and corrosion buildup.

Can insulated terminals handle high temperatures?

Some insulated terminals are specifically designed for high-temperature applications.

Nylon and heat shrink insulated terminals generally provide better heat resistance than standard PVC insulated terminals.

For extreme temperatures, specialized high-temperature materials may be required.

What is the best insulation type for industrial equipment?

Nylon insulated terminals are commonly recommended for industrial equipment because they provide:

• Strong mechanical durability
• Better abrasion resistance
• Improved heat resistance
• Reliable vibration performance

For harsh outdoor industrial environments, heat shrink terminals may be even more suitable.

Why is proper crimping important for insulated terminals?

Proper crimping ensures:

• Low contact resistance
• Strong pull-out force
• Stable electrical conductivity
• Long-term reliability

Poor crimping may lead to overheating, loose connections, and premature terminal failure.

Can insulated terminals be used outdoors?

Yes, but the insulation type matters.

For outdoor use, recommended solutions include:

• Heat shrink insulated terminals
• Waterproof connectors
• Tin-plated copper terminals

Standard PVC terminals may not provide sufficient long-term outdoor durability.

Why are tin-plated terminals commonly used with insulated connectors?

Tin plating helps improve:

• Corrosion resistance
• Conductivity stability
• Moisture protection
• Long-term reliability

This makes tin-plated terminals ideal for outdoor, automotive, and industrial insulated connector applications.
